PagerDuty Integration

Last updated on

The PagerDuty integration automatically discovers services and teams from your PagerDuty account and brings them into the IDP Catalog. Once discovered, entities can be registered as new catalog entries or merged into existing ones, enriching them with PagerDuty-sourced metadata such as on-call schedules, incident analytics, and team ownership.

For each entity type, the integration collects the following:

EntityWhat it provides
ServiceTotal incidents, mean time to first acknowledgment, mean time to resolve, on-call responders, and linked PagerDuty teams.
TeamTeam-level incident analytics and team identifiers.

Before you begin​

The following are needed to get the integration running:

  • The feature flag IDP_CATALOG_CD_AUTO_DISCOVERY is enabled. Contact Harness Support to enable it.
  • You have the required RBAC permissions to manage integrations. All integration operations require the IDP_INTEGRATION_EDIT permission on the IDP_INTEGRATION resource type.
  • A PagerDuty connector is configured in Harness with the credentials needed to access your PagerDuty account. You can also add the connector during the setup of PagerDuty Integration.
Proxy Configuration

If your environment blocks outbound third-party traffic and routes it through a proxy, you'll need to configure proxy settings on your Harness Delegate. Once configured there, the proxy settings are automatically picked up by IDP integrations. No additional setup is needed on the integration side.

Here's how to set it up: Configure delegate proxy settings

Enable the PagerDuty Integration​

info

The PagerDuty integration is currently available at the Account level only. Navigate to the Account scope of the Internal Developer Portal to add or manage PagerDuty integrations.

1. Navigate to the Integrations Page​

  1. In Harness, open the Internal Developer Portal.

  2. From the left sidebar, click Configure.

  3. In the left navigation menu, click Integrations.

    Figure 1: Navigation Path of PagerDuty Integration

  4. On the Integrations page, click + New Integration at the top.

  5. Select PagerDuty from the integration type picker. You will be taken to the Auto Discover PagerDuty Integration page.

2. Configure Setup & Connectivity​

This section connects Harness IDP to your PagerDuty account.

  1. Enter a name in the Integration Name field. This name appears on the integration card on the Integrations page (e.g., PagerDuty Production).

  2. Click the Choose PagerDuty connector dropdown and select the PagerDuty connector you want to use to pull data into the IDP.

    Don't have a PagerDuty connector yet?

    If no connectors appear in the dropdown, you need to first create a PagerDuty connector in Harness. Navigate to Account Settings → Connectors and create a new PagerDuty connector by providing your PagerDuty API key. Once saved, it will appear in the dropdown here.

3. Configure Mapping & Correlation​

This section defines how PagerDuty entities are mapped to IDP catalog entities and how they are correlated with existing records.

The integration supports two entity types: Service Entity and Team Entity, each with its own toggle, registration behavior, and field configuration.

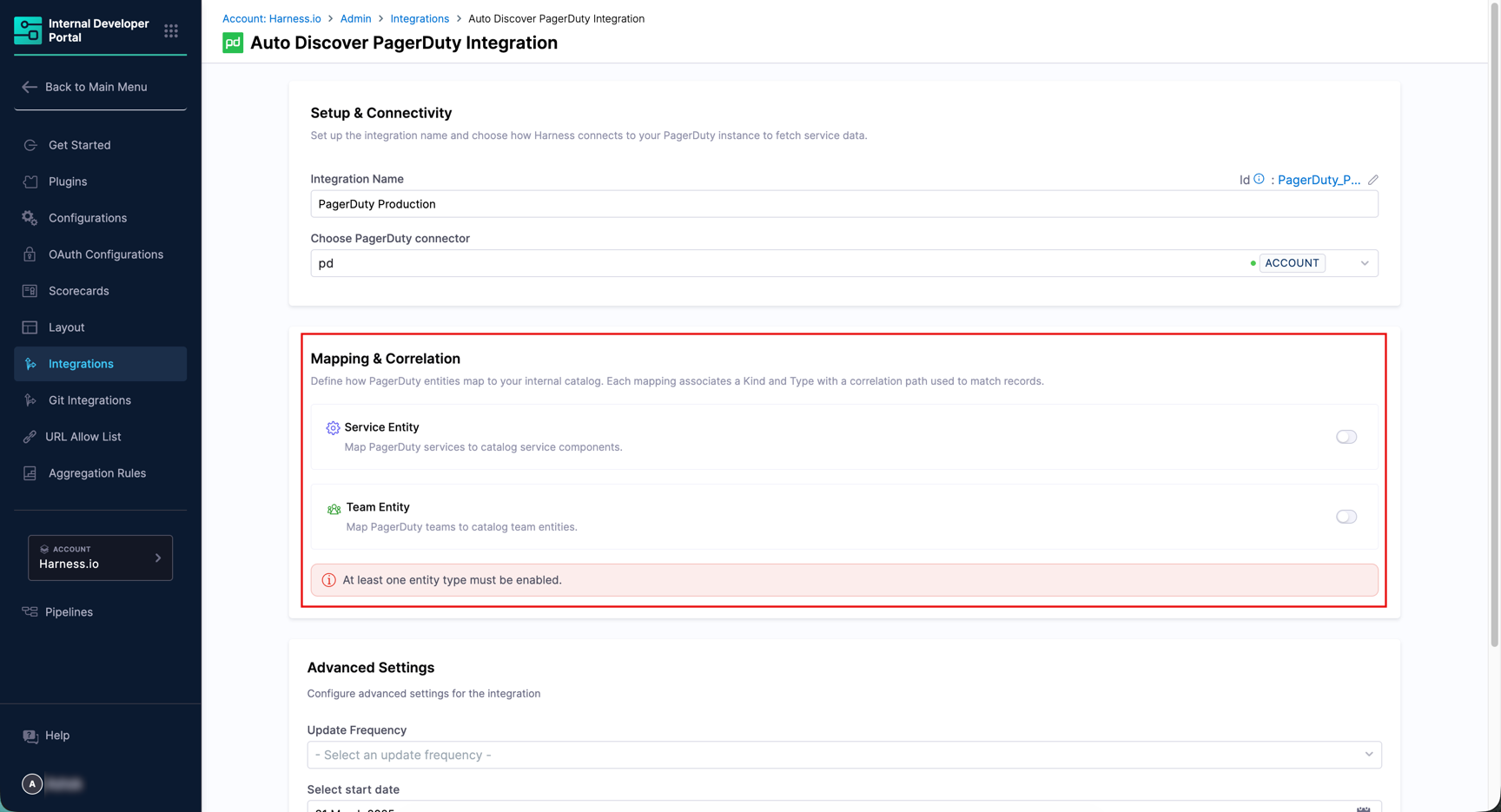

Figure 2: Available Entities - Service and Team

Service Entity​

The Service Entity mapping imports PagerDuty services as catalog components.

  1. Ensure the Service Entity toggle is turned on.

  2. Under Entity Registration Behavior, choose how services are brought into the catalog:

    • Register & Merge (Default) - Registers new entities and updates existing ones when a match is found. This is the recommended option for most setups.

    • Register - Creates new catalog entities from PagerDuty. Does not merge with existing entities.

    • Merge - Links discovered services to existing catalog entities. Matching entities are recommended automatically, but you can choose a different one.

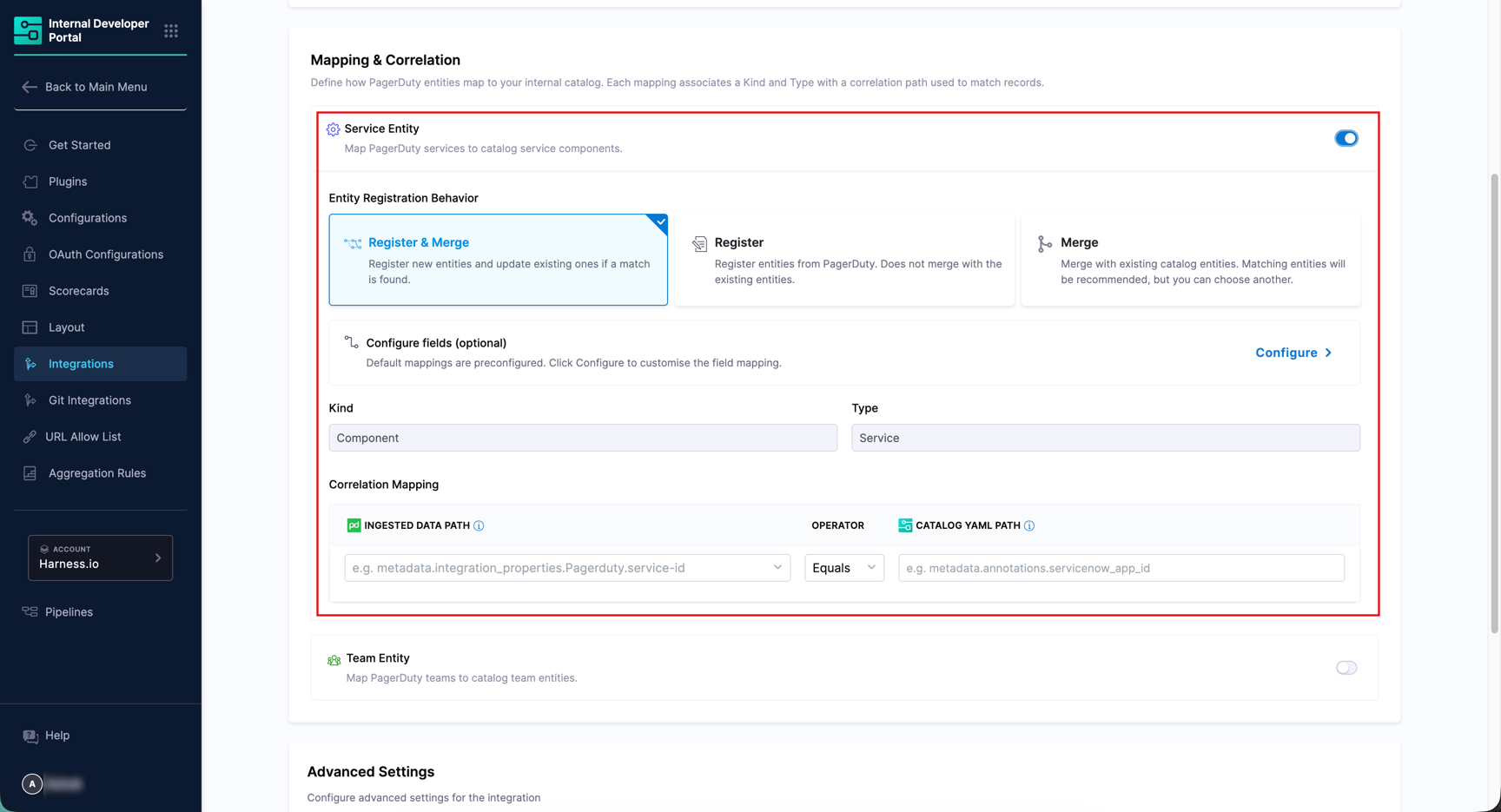

      Figure 3: Enable Service Entity

  3. The default Kind is Component and Type is Service. These are pre-configured and apply to all PagerDuty service imports.

  4. Under Correlation Mapping, set the Ingested Data Path (from PagerDuty) and the corresponding Catalog YAML Path (from your IDP entity) to define how records are matched. The operator defaults to Equals. Check the example shown below:

    Ingested Data PathOperatorCatalog YAML Path
    metadata.integration_properties.PagerDuty.identifierEqualsmetadata.annotations.pagerduty_service_id

  5. Optionally, click Configure next to Configure fields to customize which PagerDuty fields are synced to the catalog. By default, all available fields are selected.

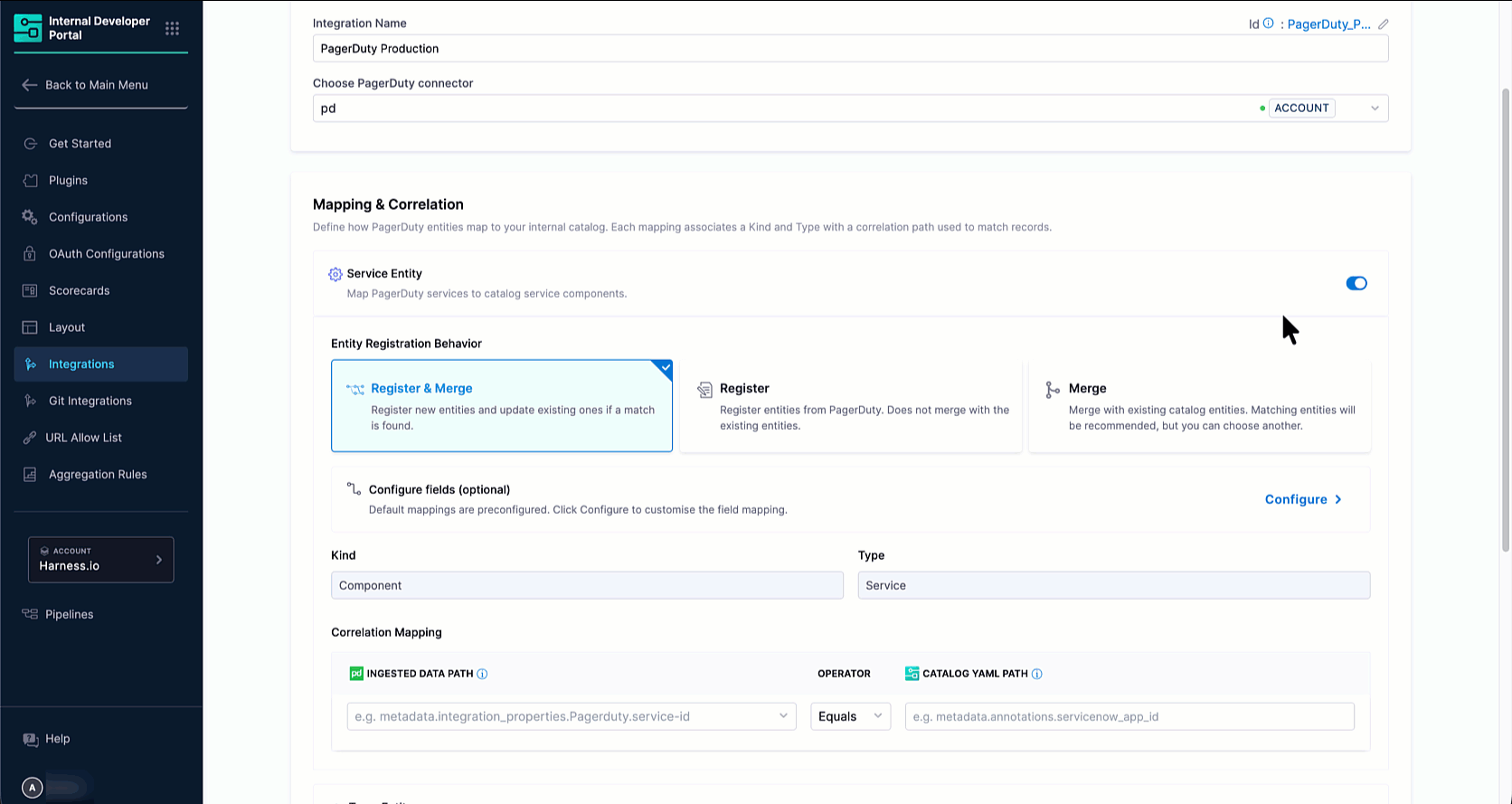

    Figure 4: Service Entity Configuration

    The available PagerDuty service fields include:

    PagerDuty FieldDescription
    analyticsMeanSecondsToFirstAckMean time to first acknowledgment (in seconds).
    analyticsMeanSecondsToResolveMean time to resolve an incident (in seconds).
    analyticsTotalIncidentsTotal number of incidents for the service.
    onCallNameThe name of the on-call responder currently assigned to the service.
    pagerdutyStatusThe current status of the PagerDuty service.
    teamsThe PagerDuty teams associated with the service, including team URLs and metadata.
    ownedByMaps to the catalog ownedBy field, linking the service to its owning team entity.

Team Entity​

The Team Entity mapping imports PagerDuty teams as catalog group entities.

  1. Ensure the Team Entity toggle is turned on.

  2. Under Entity Registration Behavior, choose the registration behavior as described above for Service Entity.

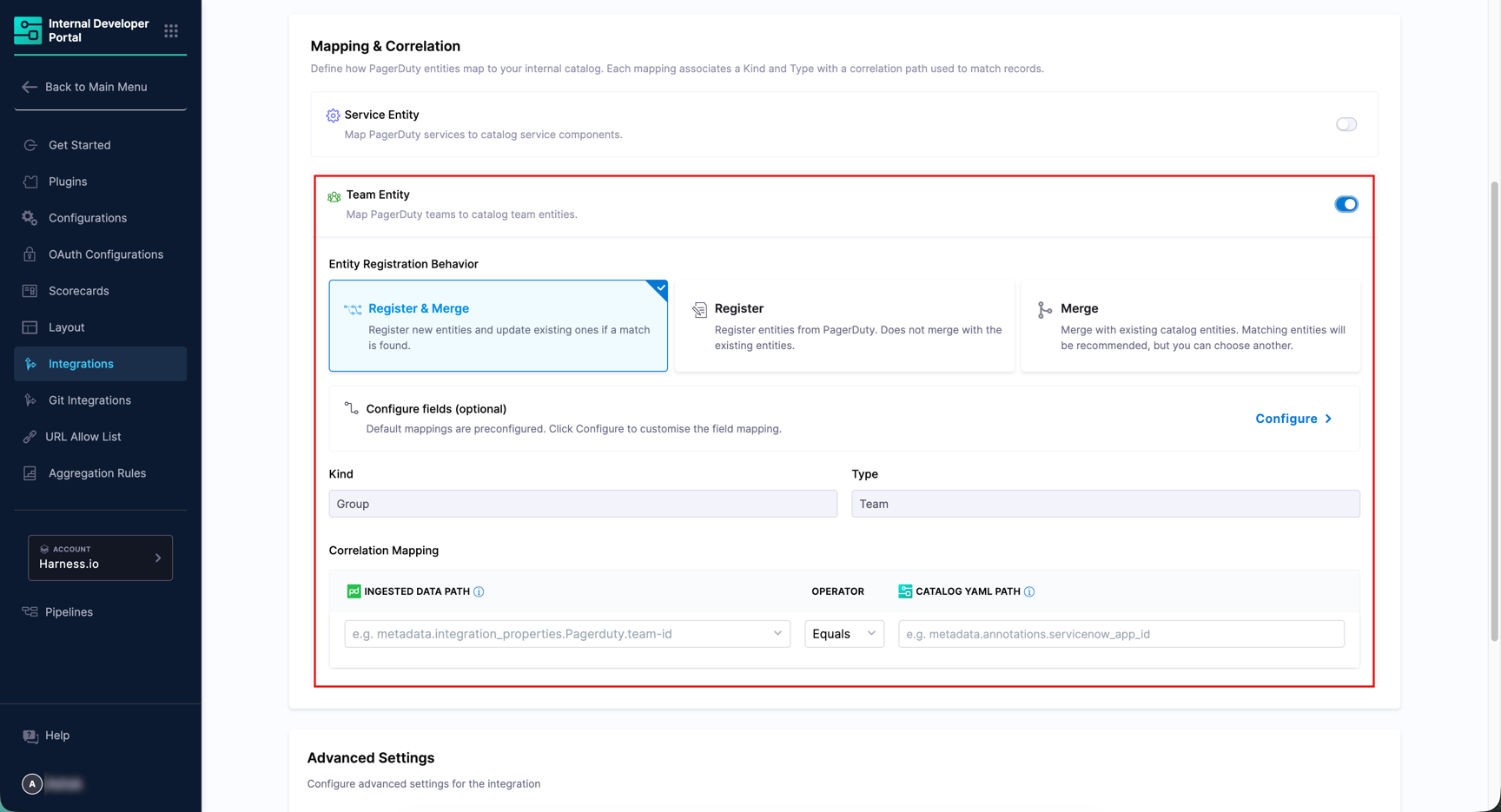

    Figure 5: Enable Team Entity

  3. The default Kind is Group and Type is Team.

  4. Configure the Correlation Mapping fields as needed.

  5. Optionally, click Configure next to Configure fields (optional) to customize the field mapping.

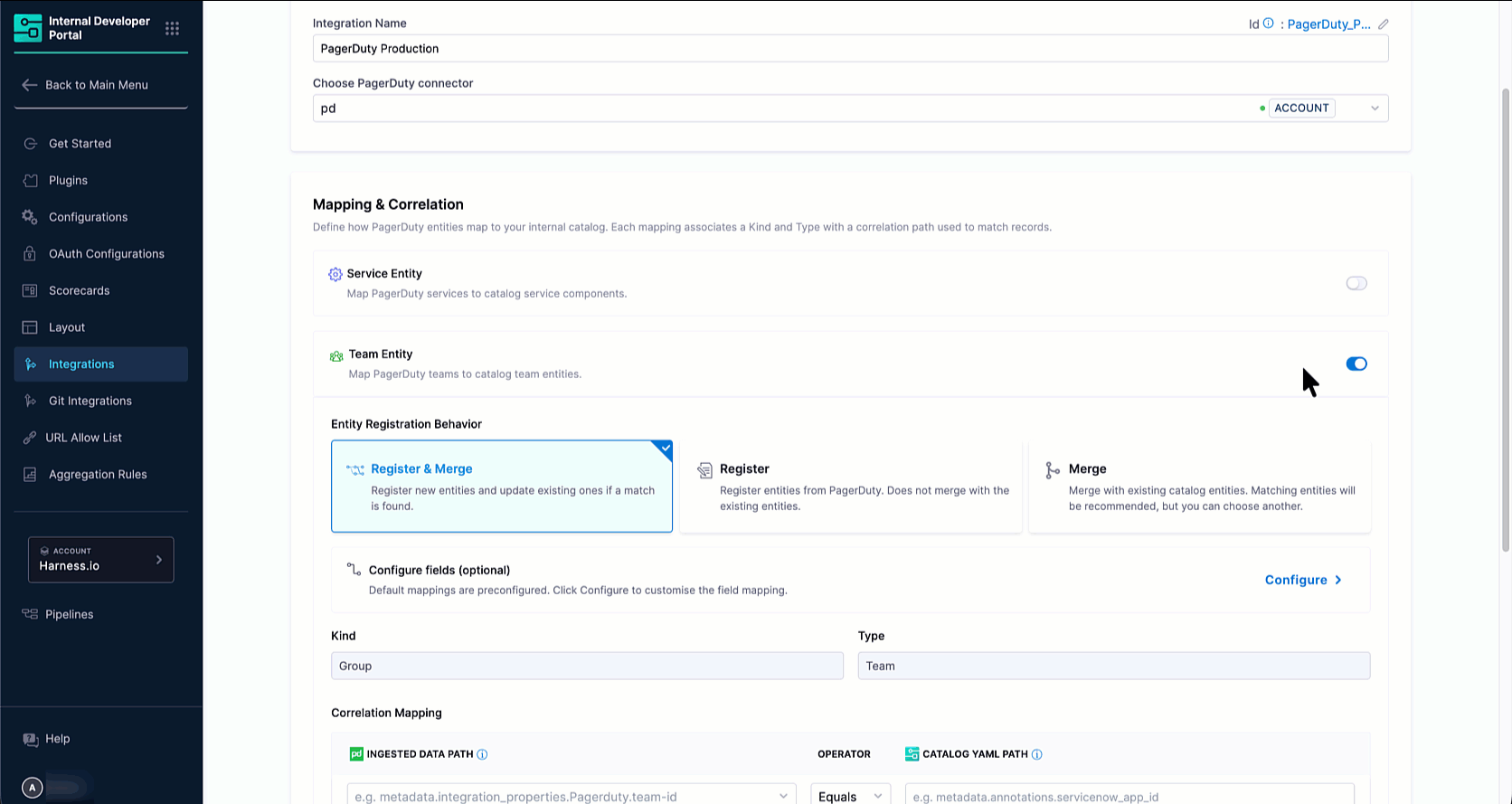

    Figure 6: Team Entity Configuration

    The available PagerDuty fields include:

    PagerDuty FieldDescription
    analyticsMeanSecondsToFirstAckMean time to first acknowledgment (in seconds).
    analyticsMeanSecondsToResolveMean time to resolve an incident (in seconds).
    analyticsTotalIncidentsTotal number of incidents for the team.
    defaultRoleThe default role assigned to team members.
    nameMaps to the catalog name field, setting the team entity's display name.

4. Configure Advanced Settings​

The Advanced Settings section controls how frequently IDP syncs with PagerDuty and how far back historical data is pulled.

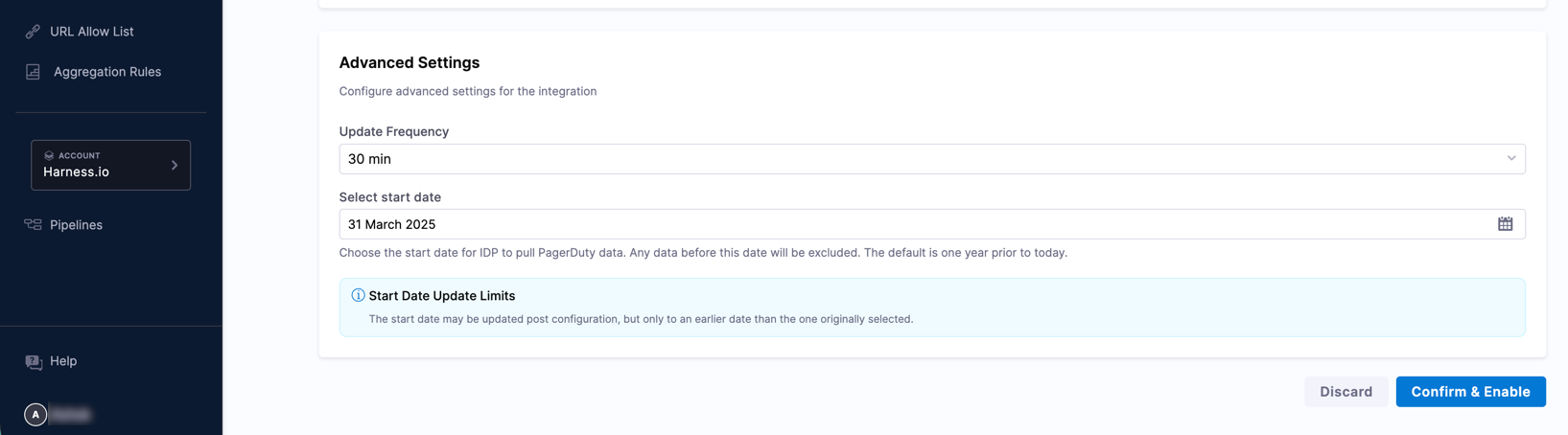

Figure 7: Advanced Settings

  1. Select an Update Frequency from the dropdown to control how often IDP polls PagerDuty for new data.

    Available options: 10 min, 30 min, 1 hour, 3 hours, 6 hours, 12 hours, 1 day, 2 days, 7 days.

  2. Set the Select Duration to define how far back IDP pulls service and team analytics data from PagerDuty. Available options: 1 month, 2 months, 3 months, 4 months, 5 months, 6 months. Note that for incidents, the duration is always 1 month regardless of this setting.

  3. Once all sections are configured, click Confirm & Enable. A confirmation dialog will appear before the changes are applied.

The integration is now enabled and IDP begins syncing data from PagerDuty. Discovered services and teams appear in the Discovered tab.

Discover and Import PagerDuty Entities​

This section covers how to view the PagerDuty entities discovered by the integration and import them into your IDP Catalog.

Discovered tab​

After the integration runs, all PagerDuty services and teams detected appear in the Discovered tab. Use the Service and Team sub-tabs to switch between entity types. If entities do not appear, use the Sync button at the top right to manually refresh.

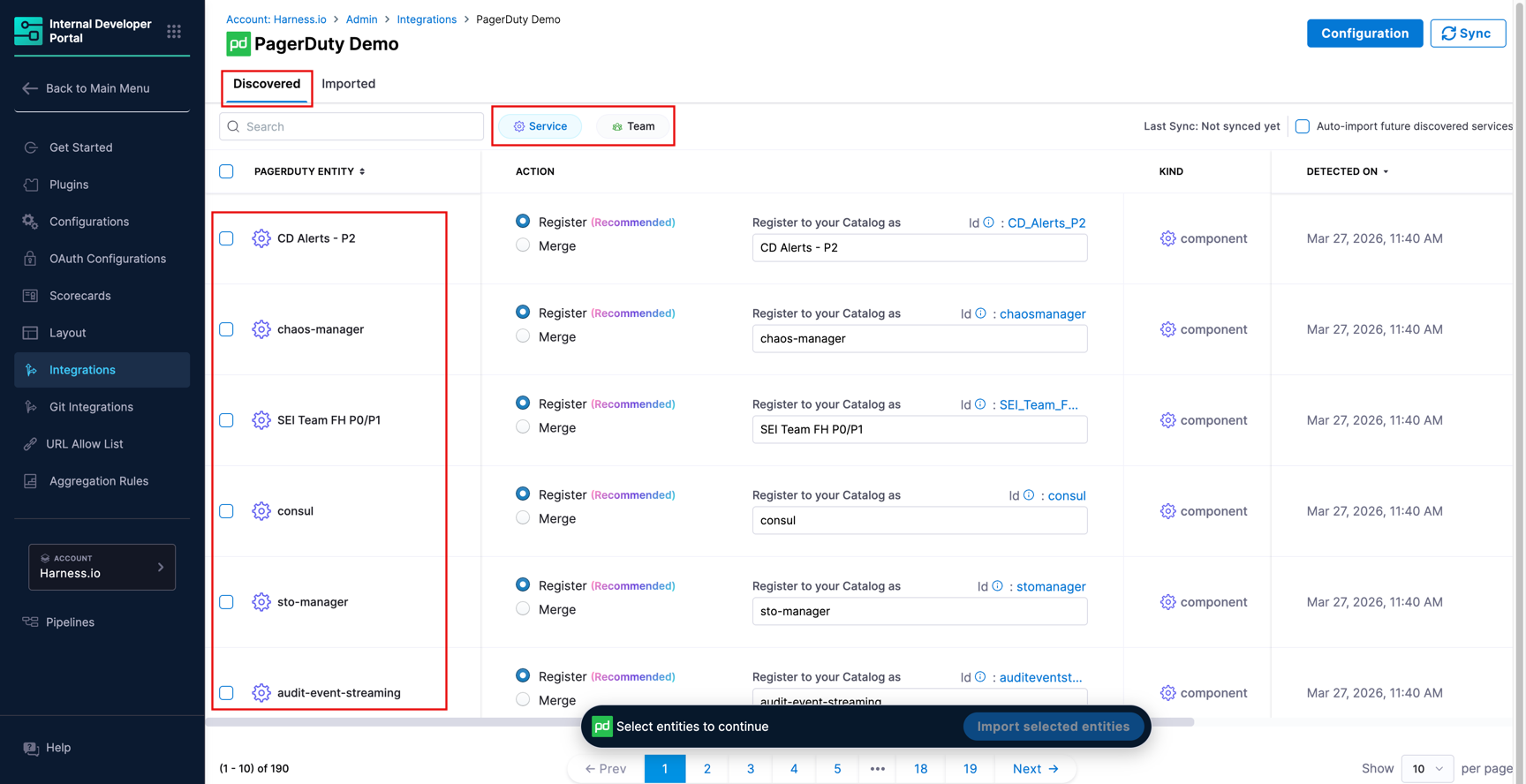

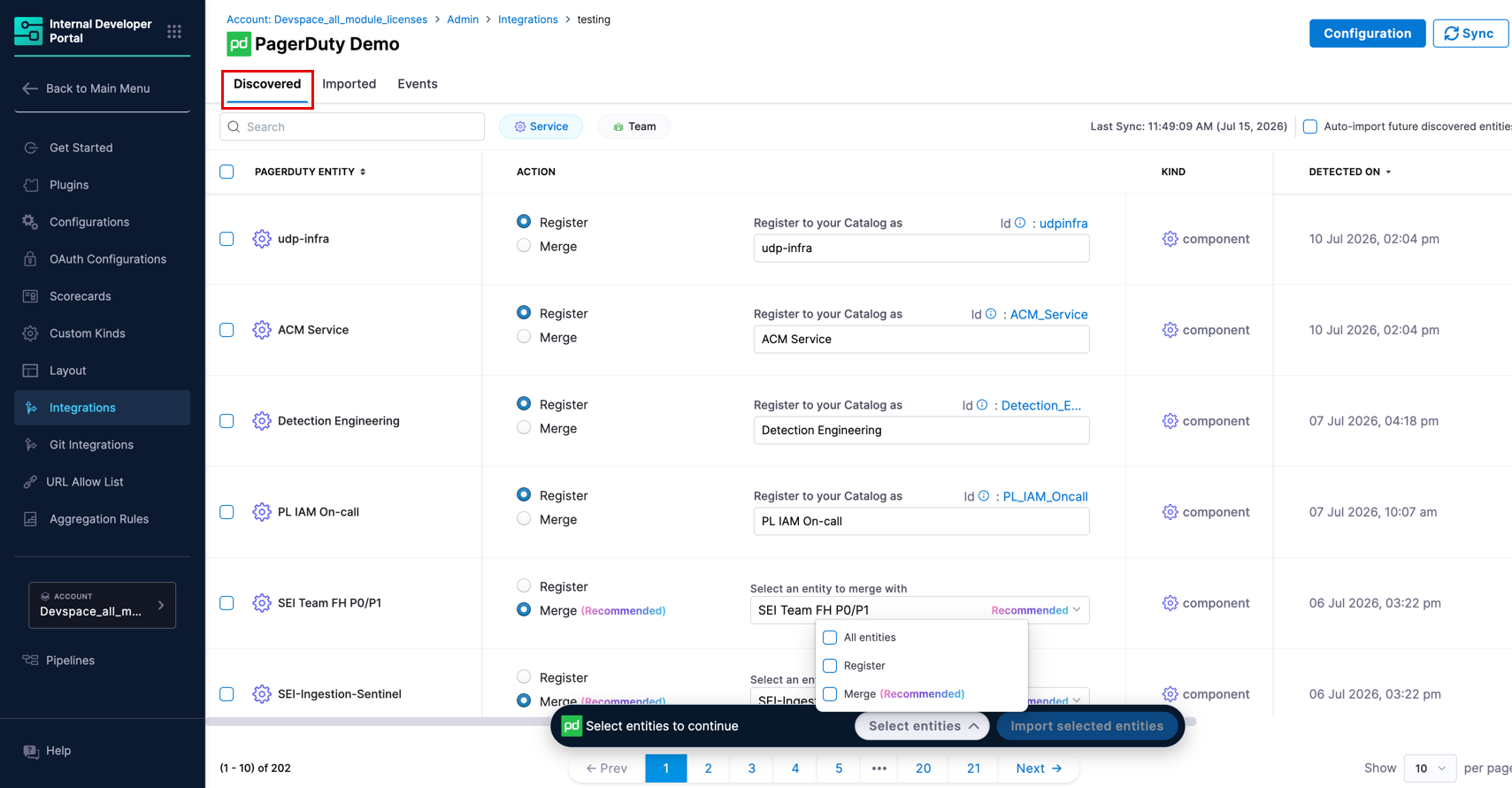

Figure 8: 'Discovered' tab showing the PagerDuty Services and Teams

For each discovered entity, you can see its name, the recommended catalog action, kind, type, and the date it was detected. You can choose how to bring entities into the catalog using one of the following actions:

  • Register (shown as Recommended when no matching catalog entity exists) - Creates a new catalog entity populated with the PagerDuty metadata.
  • Merge - Links the discovered entity to an existing catalog entity, enriching it with PagerDuty data. If IDP finds a catalog entity with a matching name, the Merge option is pre-selected and the suggested entity is shown automatically.
Bulk Import and Auto Import Options
  • Bulk Import - Select multiple entities using the checkboxes and click Import selected entities at the bottom of the page to import them all at once. The selection widget shows a count of selected entities.
  • Auto Import - Toggle Auto-import future discovered services in the top right of the Discovered tab to automatically import all future entities without manual review. You can change this preference at any time.

Imported tab​

The Imported tab displays all PagerDuty entities that have been brought into the catalog. Use the Service and Team sub-tabs to view each entity type separately.

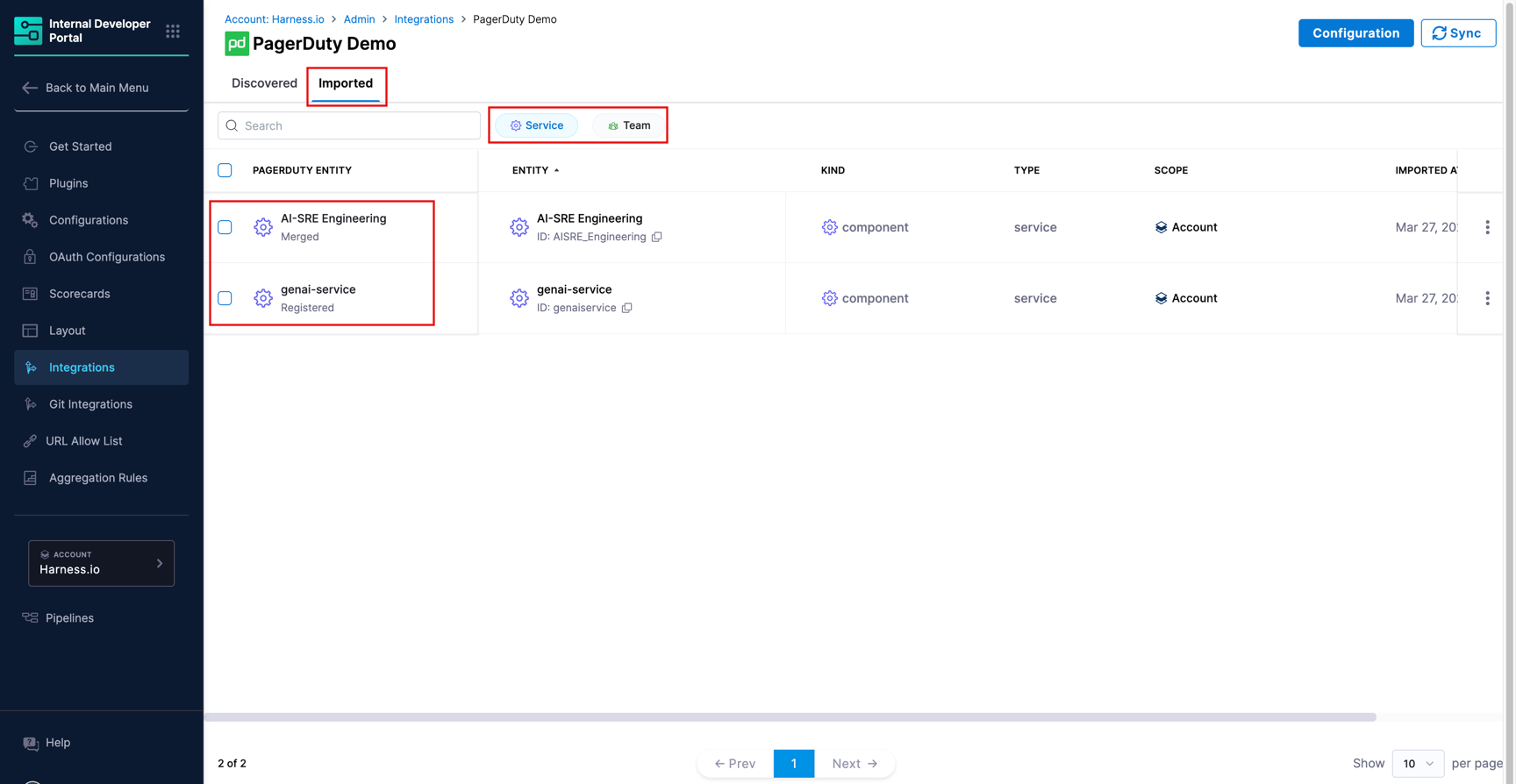

Figure 9: 'Imported' tab showing the PagerDuty Services and Teams linked to the catalog entities

It displays the following data:

ColumnDescription
PagerDuty EntityThe name of the entity from PagerDuty, along with its import status (for example, Registered).
EntityThe linked IDP catalog entity and its ID.
KindThe catalog entity kind (e.g., component for services, group for teams).
TypeThe catalog entity type (e.g., service for services, team for teams).
ScopeThe Harness account scope the entity belongs to.
Imported AtThe timestamp when the entity was imported.
Unlink an Imported Entity

To stop syncing a specific entity without deleting the catalog entity, use the three-dot menu on any row and select Unlink. This stops sync updates while keeping the IDP entity and its existing data intact.

View PagerDuty Entities in the Catalog​

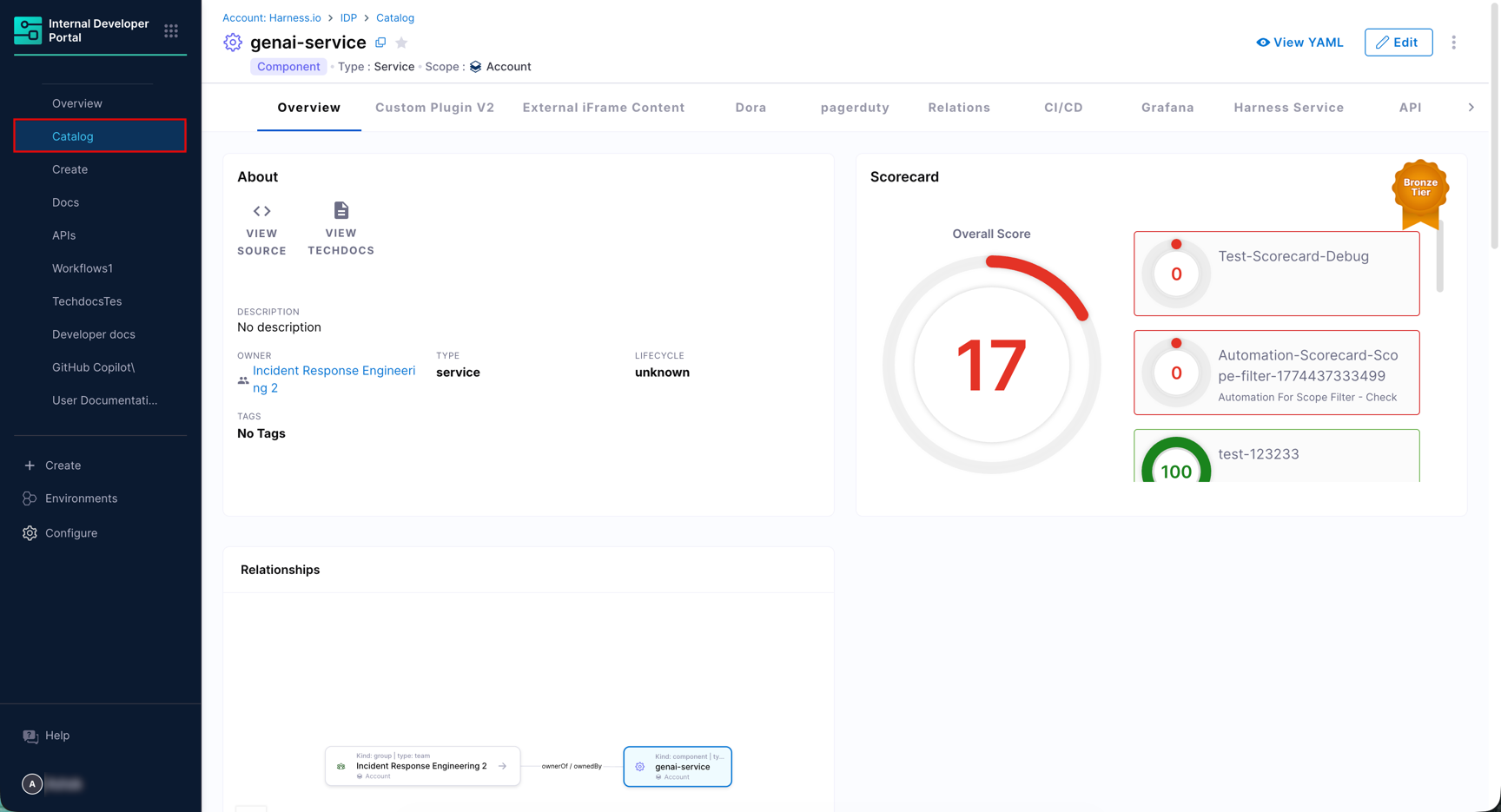

Once imported, PagerDuty entities are available in the Catalog section of IDP as standard catalog entities.

Each imported PagerDuty service is registered with:

  • Kind: Component
  • Type: Service
  • Scope: The Harness account the integration belongs to

Similarly, each imported PagerDuty team is registered with:

  • Kind: Group
  • Type: Team
  • Scope: The Harness account the integration belongs to

Open any entity to view PagerDuty-sourced data directly on the entity details page. This data is displayed through two dedicated UI components: a card on the Overview tab and an Incidents tab. Both require a one-time layout configuration, described in the next section.

Layout for PagerDuty Components​

To display PagerDuty data on the entity details page, you need to add the two PagerDuty components to the relevant entity layout. This is a one-time configuration per entity kind and type.

  1. From the left sidebar of IDP, go to Configure → Layout → Catalog Entities.

  2. Edit the existing layout for your entity or create a new one.

  3. Select the Entity Kind (e.g., component) and the Entity Type (e.g., service) that matches your imported PagerDuty entities.

  4. In the YAML editor, add the IntegrationsContent component inside the Overview tab's contents block, and add a new Incidents tab using the IncidentTabContent component.

    Entity Layout configuration for PagerDuty components

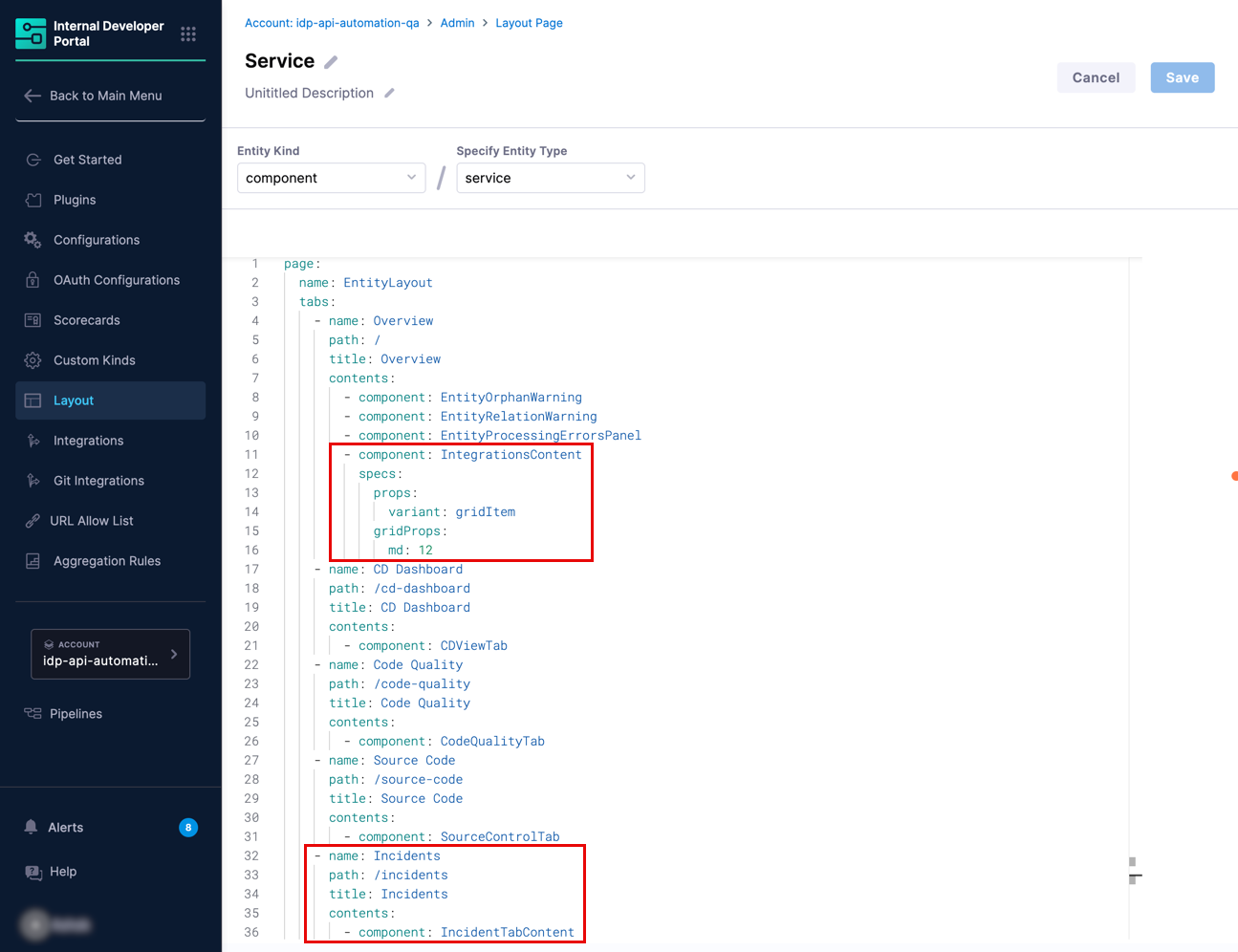

    Figure 10: Layout configuration for PagerDuty cards in Overview tab and Incidents tab

    The relevant YAML additions are:

    Inside the Overview tab's contents block
            - component: IntegrationsContent
              specs:
                props:
                  variant: gridItem
                gridProps:
                  md: 12
    A new top-level tab entry
        - name: Incidents
          path: /incidents
          title: Incidents
          contents:
            - component: IncidentTabContent

  5. Click Save to apply the layout changes. The PagerDuty components will now appear on all entity detail pages of the selected kind and type that have PagerDuty data.

Cards in Overview Tab​

After the layout is configured, two cards Incidents and On-Call appear in the Overview tab of any entity that has PagerDuty data linked to it. The card displays the key PagerDuty metadata ingested for that entity, sourced from the entity's ingested properties.

PagerDuty Cards on the Overview tab

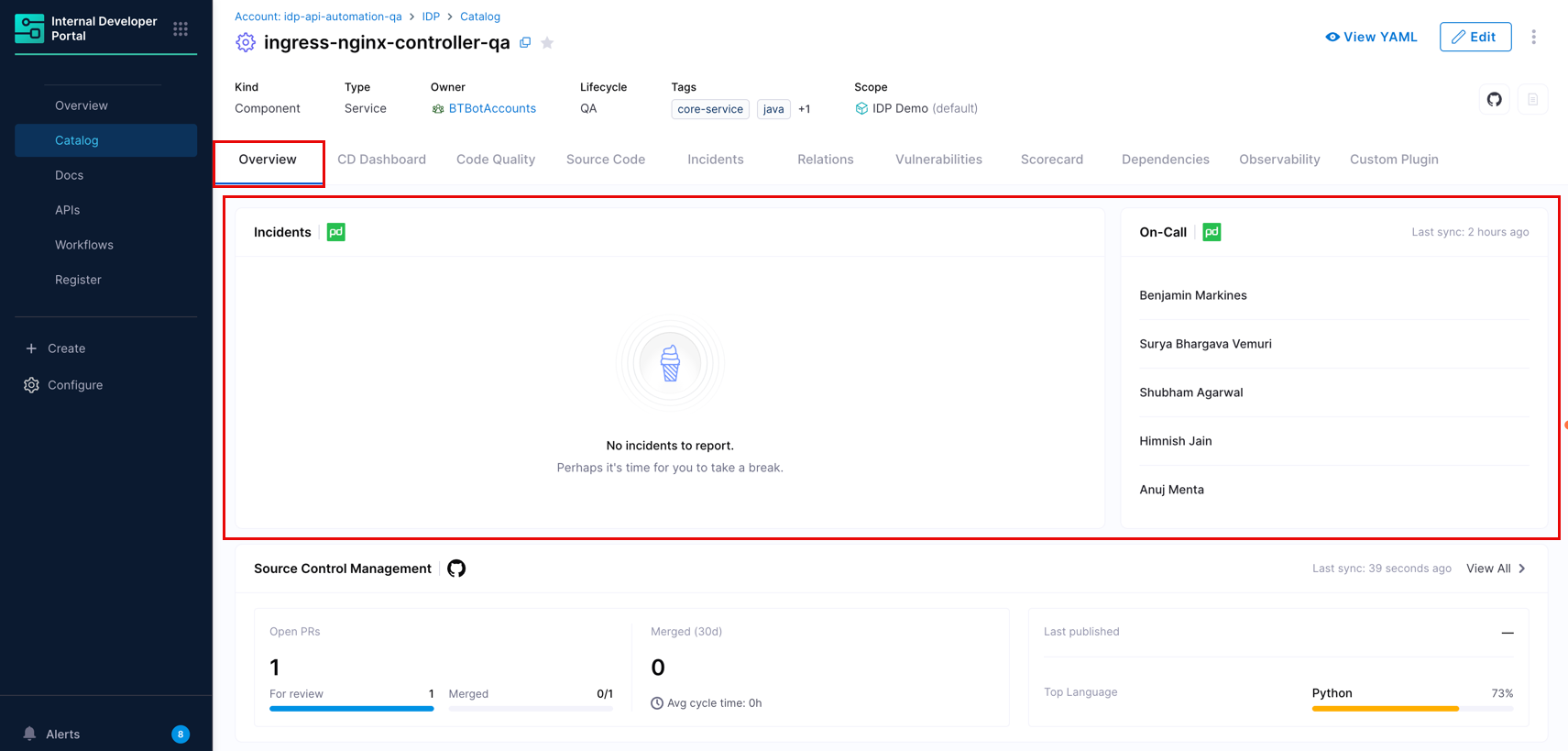

Figure 11: PagerDuty Cards on the Overview tab

If the PagerDuty integration has not been configured for the entity, the card shows a Not configured state with a link to the Integrations page.

Incidents Tab​

The Incidents tab provides a more complete view of the PagerDuty data for the entity. This tab fetches latest possible data using the integration ID and entity UUID.

Incidents tab showing full resource details

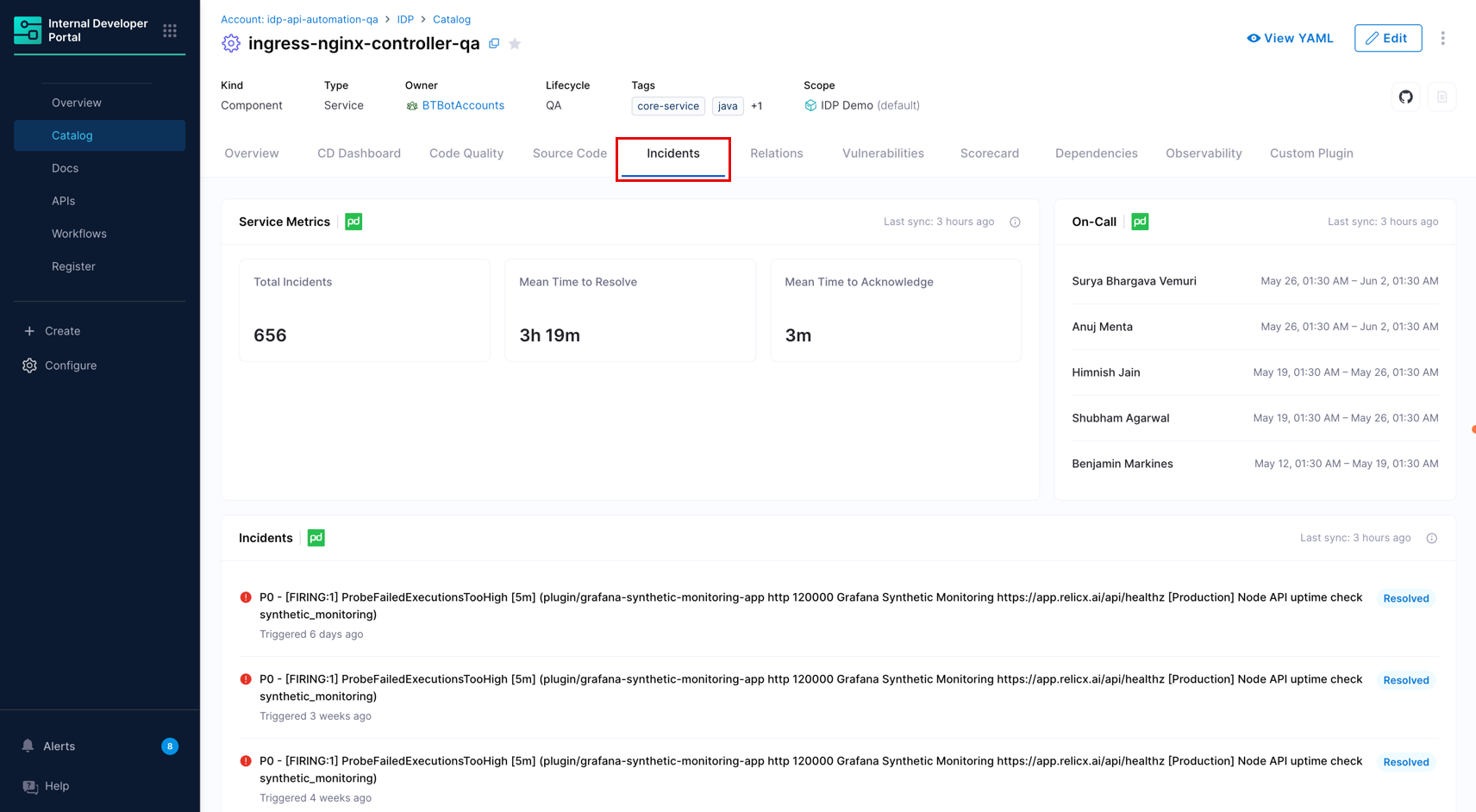

Figure 12: Incidents tab showing full PagerDuty resource details

Feature Highlights
  • The tab shows all available fields for the resource type, including fields not present in the Overview.
  • All the fields are dynamic.
  • 'Service Metrics' card displays data from the date you configured the integration.
  • 'On-Call' card displays data last synced from PagerDuty, based on your configured update frequency.
  • 'Incidents' card lists all incidents (resolved, triggered, acknowledged) from 30 days before the integration was created. Incidents are retained for 6 months from their last update.

Ingested Properties​

To inspect the raw data ingested from PagerDuty, open the entity and click View YAML → Ingested Properties in the Entity Inspector.

Figure 13a: Entity Inspector Page showing ingested properties of Service Data

Figure 13b: Entity Inspector Page showing ingested properties of Team Data

Ingested properties are stored in two sections of the entity YAML:

  • metadata.integration - Tracks which integrations are linked to this entity, including the entity action (e.g., REGISTER) and the linked entity UUID for each integration instance.
  • integration_properties.PagerDuty - Contains the PagerDuty-specific data for the entity. For service entities, this includes fields like analyticsMeanSecondsToFirstAck, analyticsMeanSecondsToResolve, analyticsTotalIncidents, identifier, name, onCallName, and teams (with PagerDuty team URLs and metadata). For team entities, this includes analytics fields and the team identifier.

Manage the PagerDuty Integration​

Edit the integration​

To update the integration name, switch the PagerDuty connector, or change the mapping and correlation settings, navigate to Integrations page, find your PagerDuty integration card, and click View. From there, click Configuration to open the edit screen.

Suspend Auto-Discovery​

If auto-discovery is suspended, new entities will not appear in the Discovered tab. Existing imported entities remain unchanged in the catalog and the sync between PagerDuty and their corresponding IDP entities will stop.

To suspend auto-discovery:

  1. Go to Integrations and open your PagerDuty integration using the View button.
  2. Click Configuration at the top.
  3. In the Danger Zone section, click Suspend.
  4. Confirm the action.

You may re-enable it at any time by following the same steps.
