Microsoft Entra ID

Last updated on

What will you learn in this topic?​

By the end of this topic, you will be able to understand:

  • How to configure Microsoft Entra ID as a SAML SSO provider in Harness.
  • How to setup authentication and user attribute mapping.
  • How to enable and test SAML authorization with Azure.

Before you begin​

  • A Harness account with Account Admin permissions.
  • An existing Microsoft Entra ID tenant with permissions to create and configure enterprise applications.
  • Users already provisioned in Microsoft Entra ID app, with the same email addresses they'll use in Harness.

Harness supports Single Sign-On (SSO) with SAML using Microsoft Entra ID, enabling Microsoft Entra ID users to log into Harness using their Microsoft Entra ID credentials.

For detailed steps on adding SAML SSO with Microsoft Entra ID, follow Microsoft's tutorial on Microsoft Entra single sign-on (SSO) integration with Harness.

note

If you use Harness Self-Managed Enterprise Edition , your instance must be accessed via an HTTPS load balancer. SAML authentication will fail over HTTP.

The section describes the Microsoft Entra ID-specific steps you must perform to use an Microsoft Entra ID app for Harness SAML SSO:

note
  • Users are not created as part of the SAML SSO integration. Users are invited to Harness using their email addresses. Once they log into Harness, their email addresses are registered as Harness Users. For more information, go to Overview of SAML SSO with Harness .

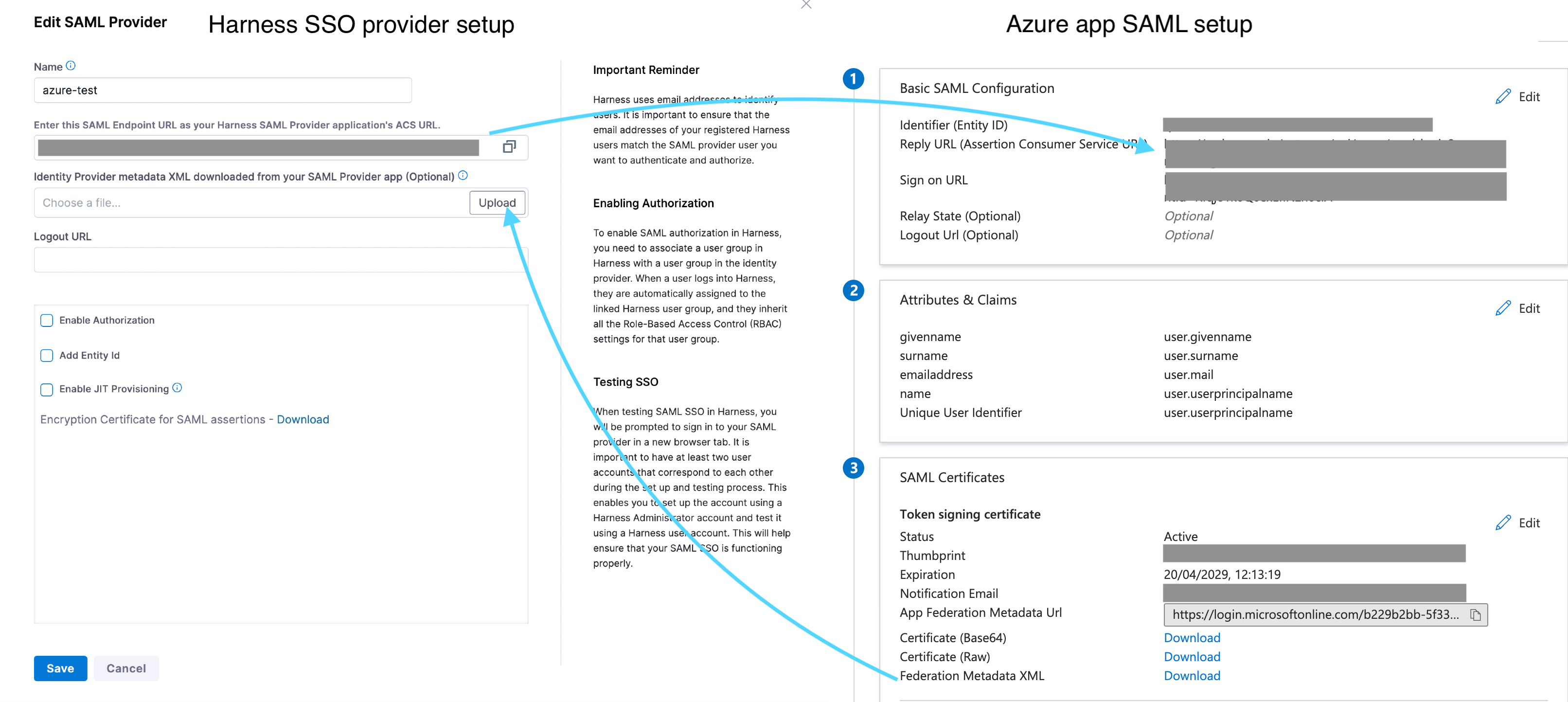

The following image shows the basic exchange of information between Harness and your Microsoft Entra ID app's Single sign-on settings:

Azure user accounts​

The Harness User accounts and their corresponding Azure user accounts must have the same email addresses.

Ensure that you have at least two corresponding user accounts in both Harness and your Azure app when setting up and testing SAML SSO. This allows you to set up the account with a Harness Administrator account and test it with a Harness user account.

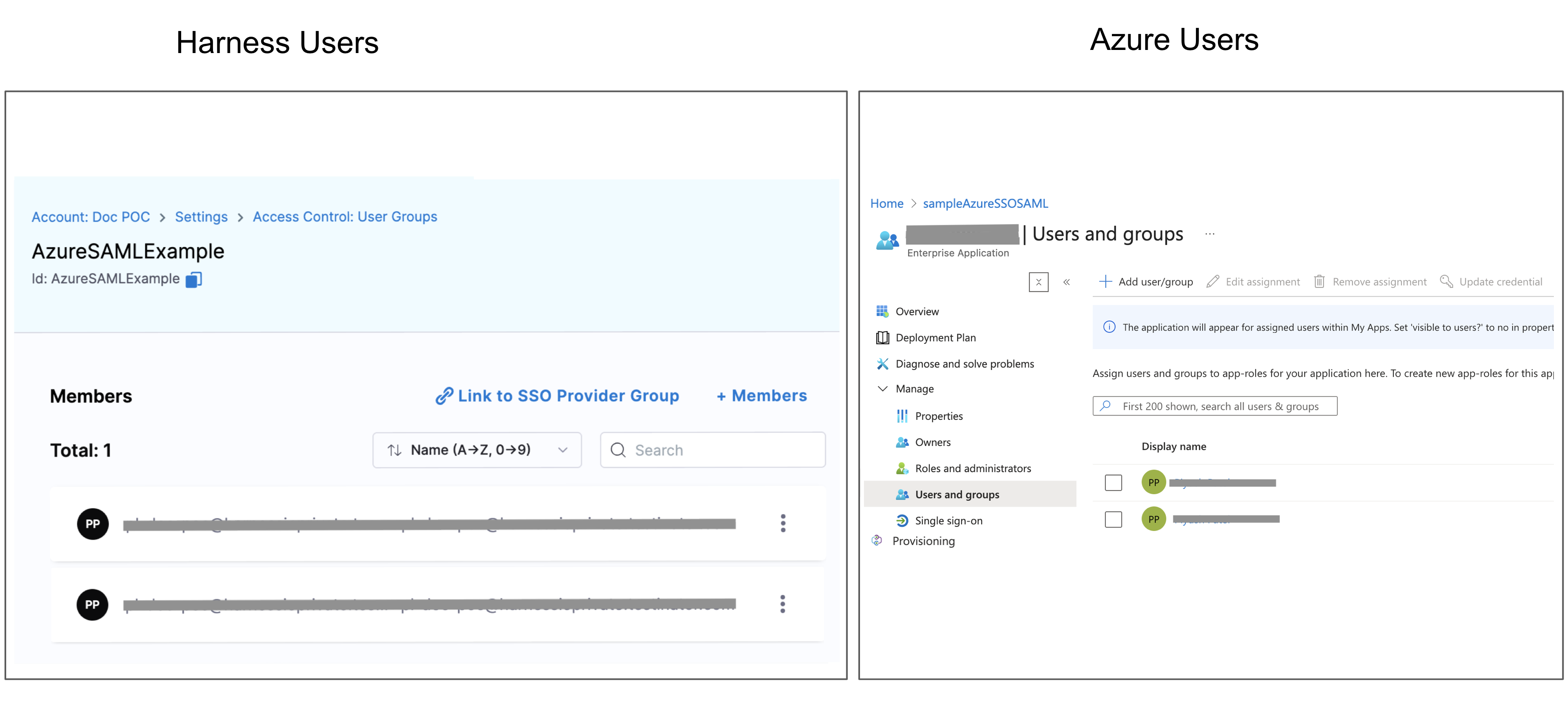

The following image shows a Harness User Group containing two users and their corresponding accounts in the Azure app that will be used for SAML SSO.

Endpoint URL for Azure​

You must enter the Harness SAML Endpoint URL from Harness in your Azure app Reply URL:

  1. In your Azure app, click Single sign-on. The SSO settings for the Azure app are displayed.

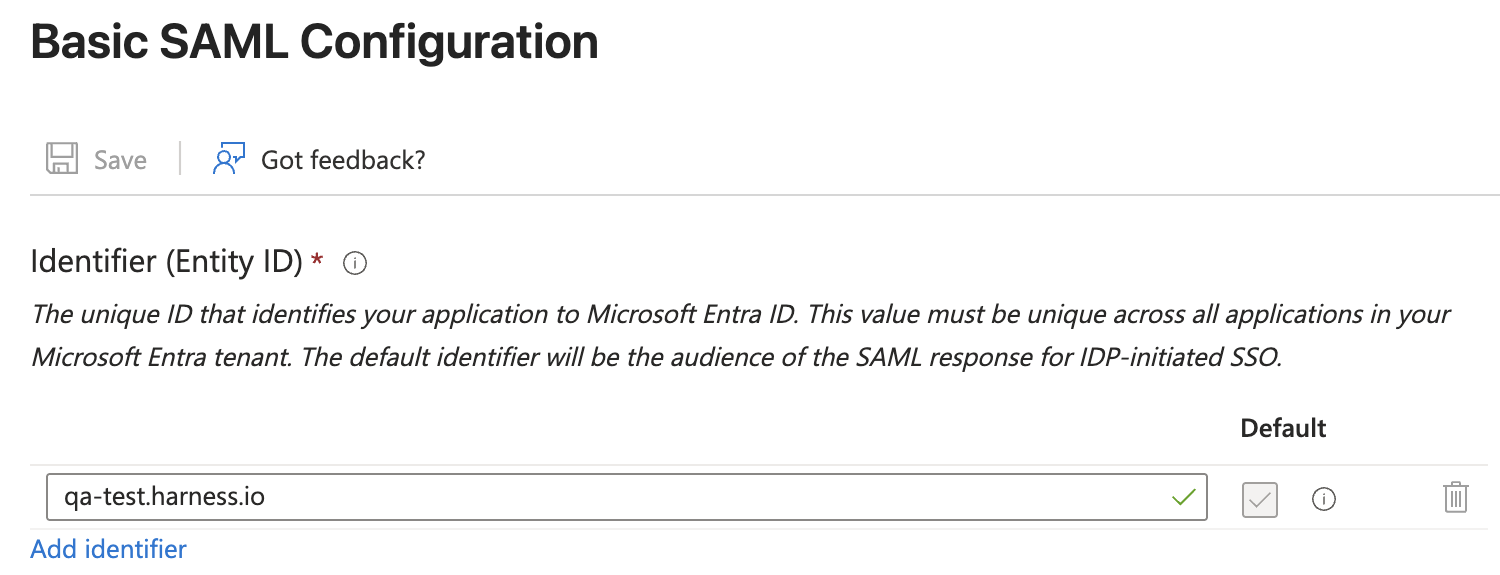

  2. In Basic SAML Configuration, click the edit icon (pencil).

  3. Enter a unique identifier in the Identifier (Entity ID) field. When your tenant only has one SAML application, this can be app.harness.io. If there are several SAML applications in the same tenant, this should be a unique identifier. While setting up SAML in Harness, the same identifier should be configured in the Entity ID field.

Next, you will use the SAML SSO Provider settings in Harness to set up your Azure app Single sign-on.

note

For Harness Self-Managed Enterprise Edition, replace app.harness.io with your custom URL. If you use a custom Harness subdomain in any Harness version, like example.harness.io, use that URL.

  1. In Home, under ACCOUNT SETUP, select Authentication. The Authentication: Configuration page appears.

  2. Select SAML Provider. The Add SAML Provider page opens.

  3. In Name, enter a name for the SAML SSO Provider.

  4. Under Select a SAML Provider, select Azure. The settings for Azure setup are displayed:

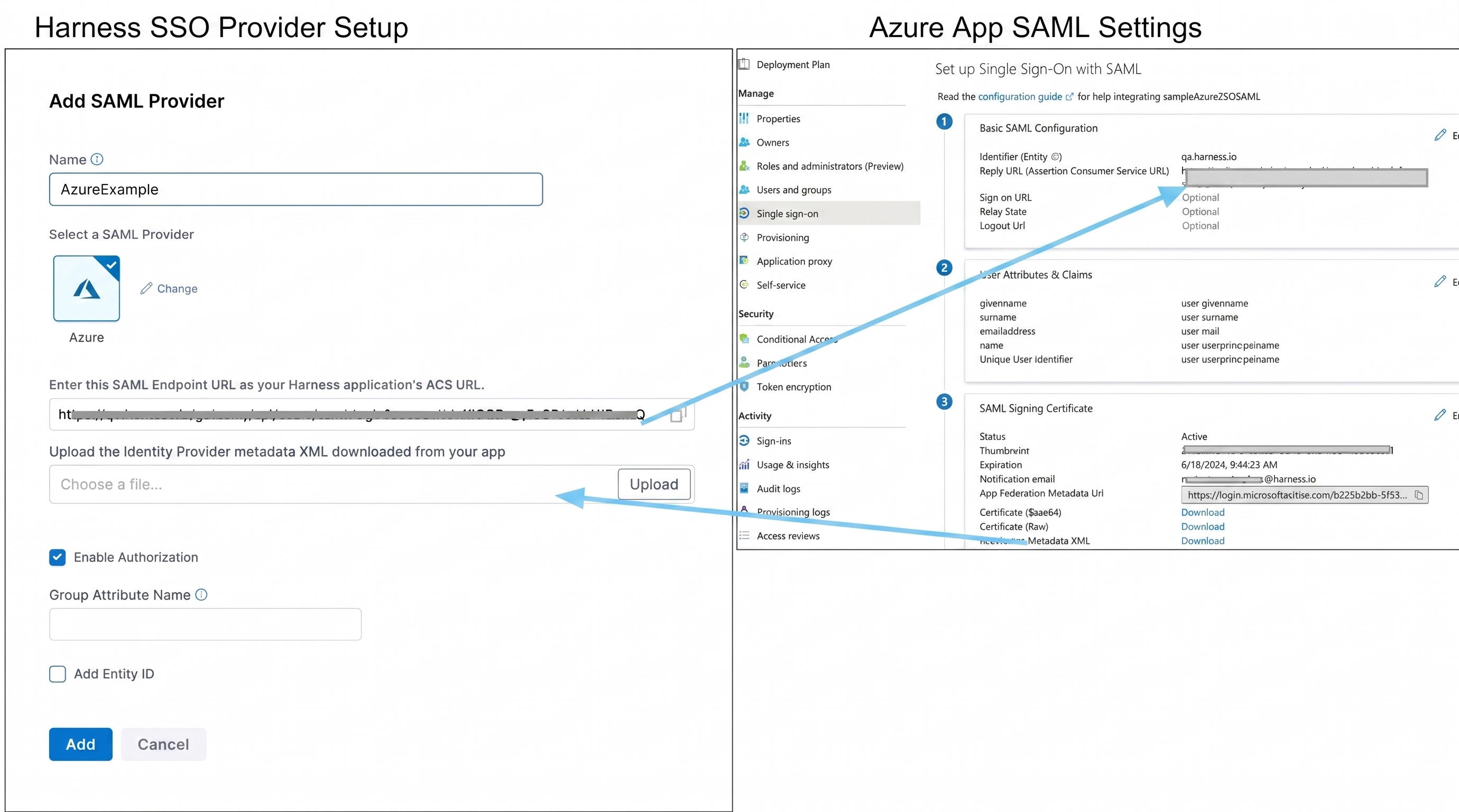

  5. Copy the Harness SAML Endpoint URL from the Add SAML Provider dialog, and paste it in the Reply URL in your Azure app.

  6. Click Save on the Azure App SAML Settings page.

User attributes and claims​

Next, you need to ensure that Harness Users' email addresses will identify them when they log in via Azure. To do this, you set up the Single sign-on section of your Azure app to use the User name email address as the method to identify users.

The Azure users that are added to your Azure app must have their email addresses listed as their User name.

To set this User name email address as the method for identifying users, in the Azure app Single sign-on section, the Azure app must use the user.userprincipalname as the Unique User Identifier, and user.userprincipalname must use Email address as the name identifier format.

note

If user.userprincipalname can't use an email address as the Name ID format, then user.email should be used as the unique identifier in the Identifier (Entity ID) field.

To set this up in your Azure app, do the following:

  1. In your Azure app, in the Single sign-on blade, in User Attributes & Claims, click the edit icon (pencil). The User Attributes & Claims settings appear.

  2. For Unique User identifier value, click the edit icon. The Manage claims settings appear.

  3. Click Choose name identifier format, and select Email address.

  4. In Source attribute, select user.userprincipalname.

  5. Click Save, and then close User Attributes & Claims.

note

If your Azure users are set up with their email addresses in some field other than User name, just ensure that the field is mapped to the Unique User Identifier in the Azure app and the name identifier format is Email address.

Azure SAML metadata file​

You must download the Federation Metadata XML from your Azure app and upload the file into Harness.

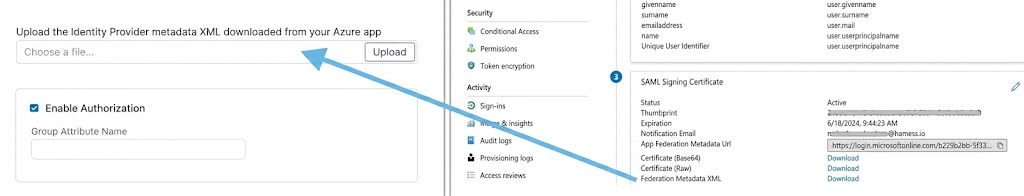

  1. Download the Federation Metadata XML from your Azure app and upload it using Upload the identity Provider metadata xml downloaded from your Azure App in the Add SAML Provider settings in Harness.

  2. Select Add Entity ID and enter your custom Entity ID. The default Entity ID is app.harness.io. The value you enter here will override the default Entity ID.

  3. Click Add. The new Azure SAML Provider is added.

Enable and test SSO with Azure​

Now that Azure is set up in Harness as a SAML SSO provider, you can enable and test it.

You can test the Azure app SSO from within Azure if you are logged into Azure using an Azure user account that has the following:

  • A corresponding Harness User account with the same email address.
  • The Azure user account is in the Azure app Users and groups settings.
  • The Azure user account has the Global Administrator Directory role in Azure.

To test Azure SSO using Azure, do the following:

  1. In the Azure app, click Single sign-on, and then at the bottom of the Single sign-on settings, click Test.

  2. In the Test panel, click Sign in as current user. If the settings are correct, you are logged into Harness. If you cannot log into Harness, the Test panel will provide debugging information. For more information, go to Debug SAML-based single sign-on to applications from Microsoft Entra ID.

To test Azure SSO using Harness, do the following:

  1. In Harness, in Account Settings → Security and Governance → Authentication, select Login via SAML, to enable SAML SSO using the Azure provider.
  2. Open a new Chrome Incognito window to test the SSO login using a Harness User account other than the one you are currently logged in with.
  3. Sign into Harness using one of the user account email addresses shared by Harness and Azure. When you sign into Harness, you are prompted with the Microsoft Sign in dialog.
  4. Enter the Azure user name for the user (most often, the email address), enter the Azure password, and click Sign in.

SAML authorization with Azure​

Once you have enabled Harness SSO with your Azure app, you can set up and enable SAML authorization in Harness using Azure.

To set up SAML authorization in Harness, you link a Harness User Group to a user group assigned to your Azure app. When a user from your Azure app logs into Harness, they are automatically added to the linked Harness User Group and inherit all the RBAC settings for that Harness User Group.

Below is the Harness SAML settings you need from Azure to set up SAML authorization in Harness:

  • Group Attribute Name - In Azure, this value is obtained from the Group Claims in the Azure app User Attributes & Claims settings.

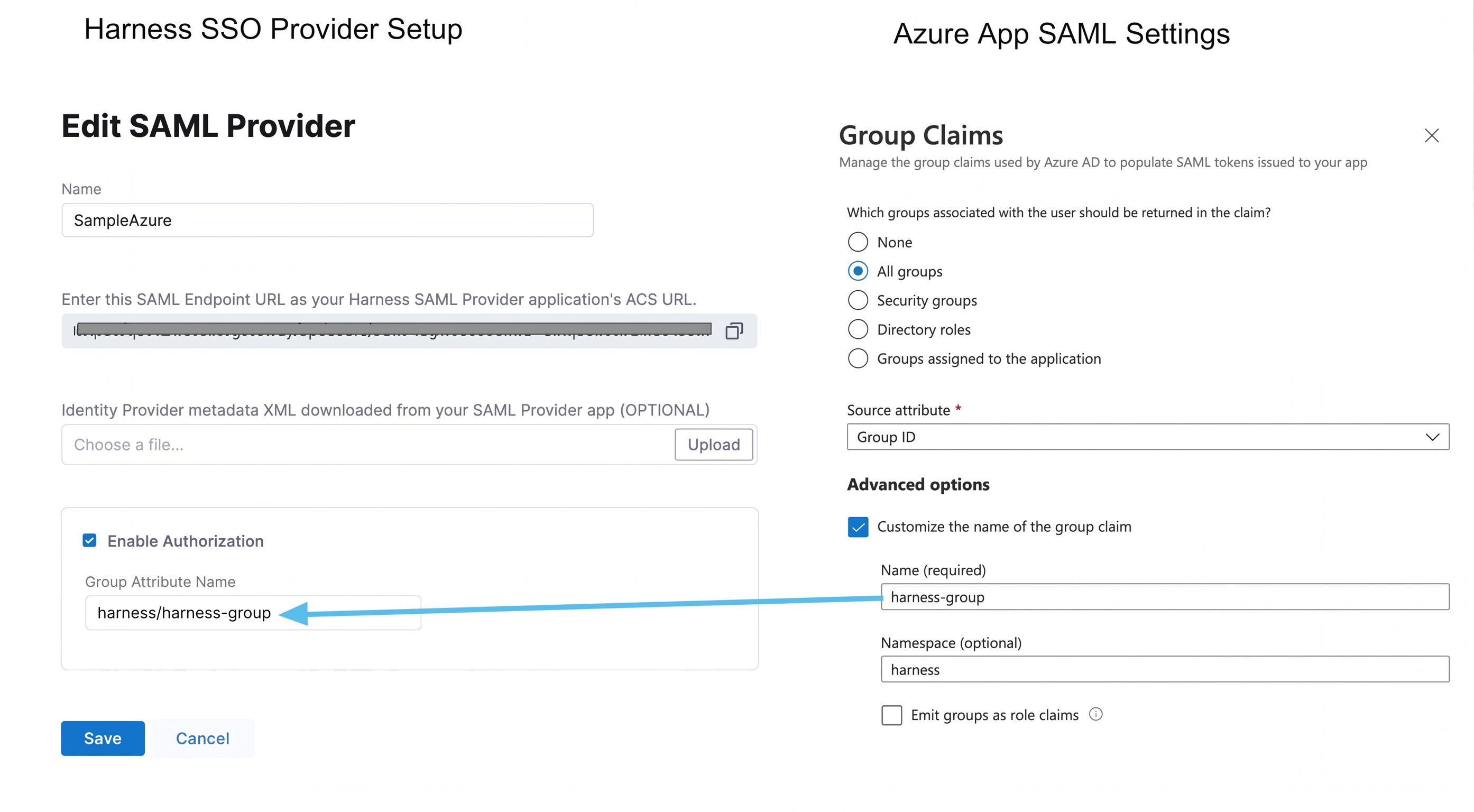

For Harness Group Attribute Name, here is the Harness SAML Provider setting on the left and their corresponding Azure Group Claims settings on the right:

To set up Azure Authorization in Harness, do the following:

  1. In Azure, add the Group Claim (Name and Namespace) to the Azure app.

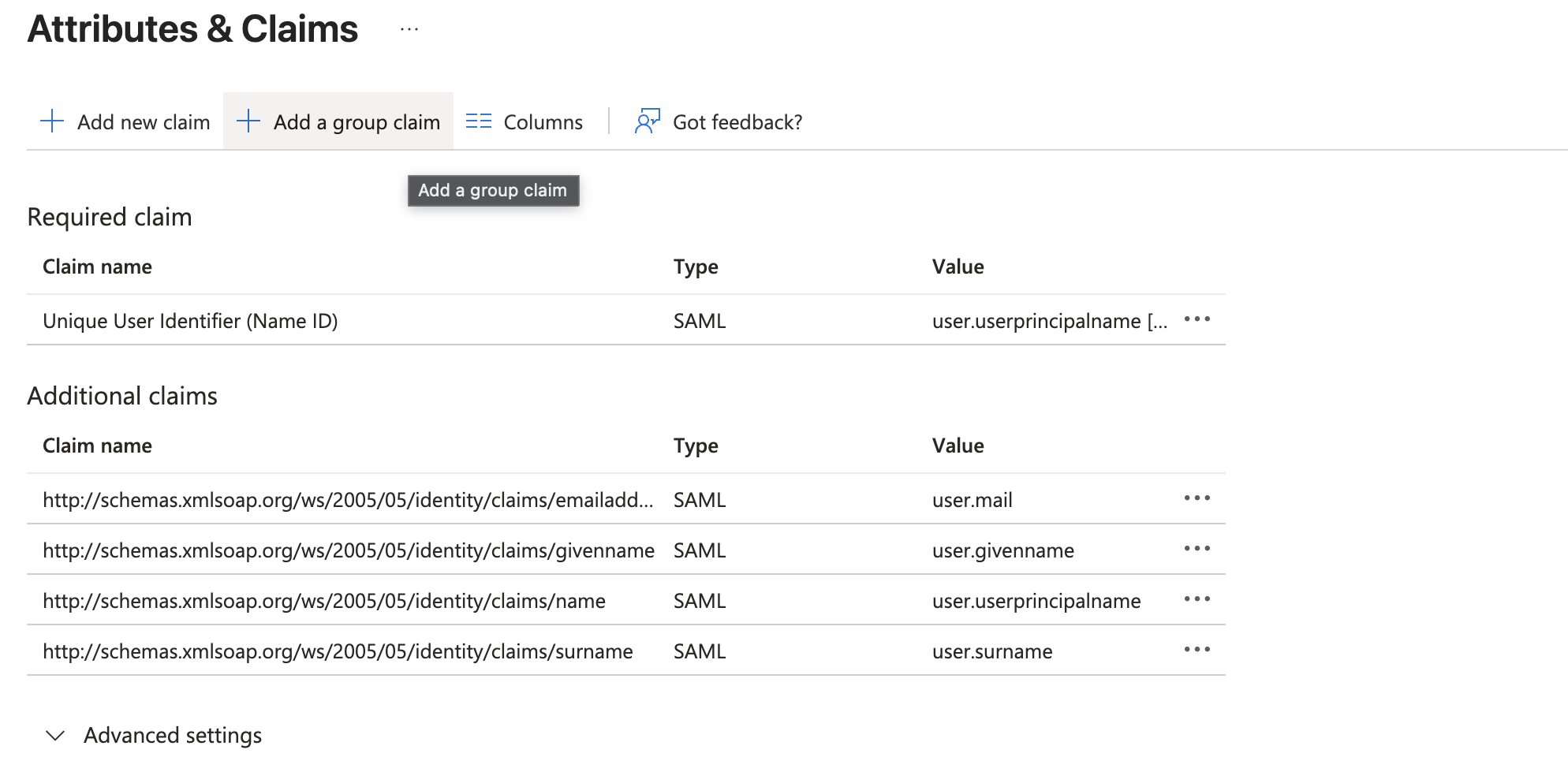

    1. In your Azure app, click Single sign-on, and then in User Attributes & Claims, click edit (pencil icon).

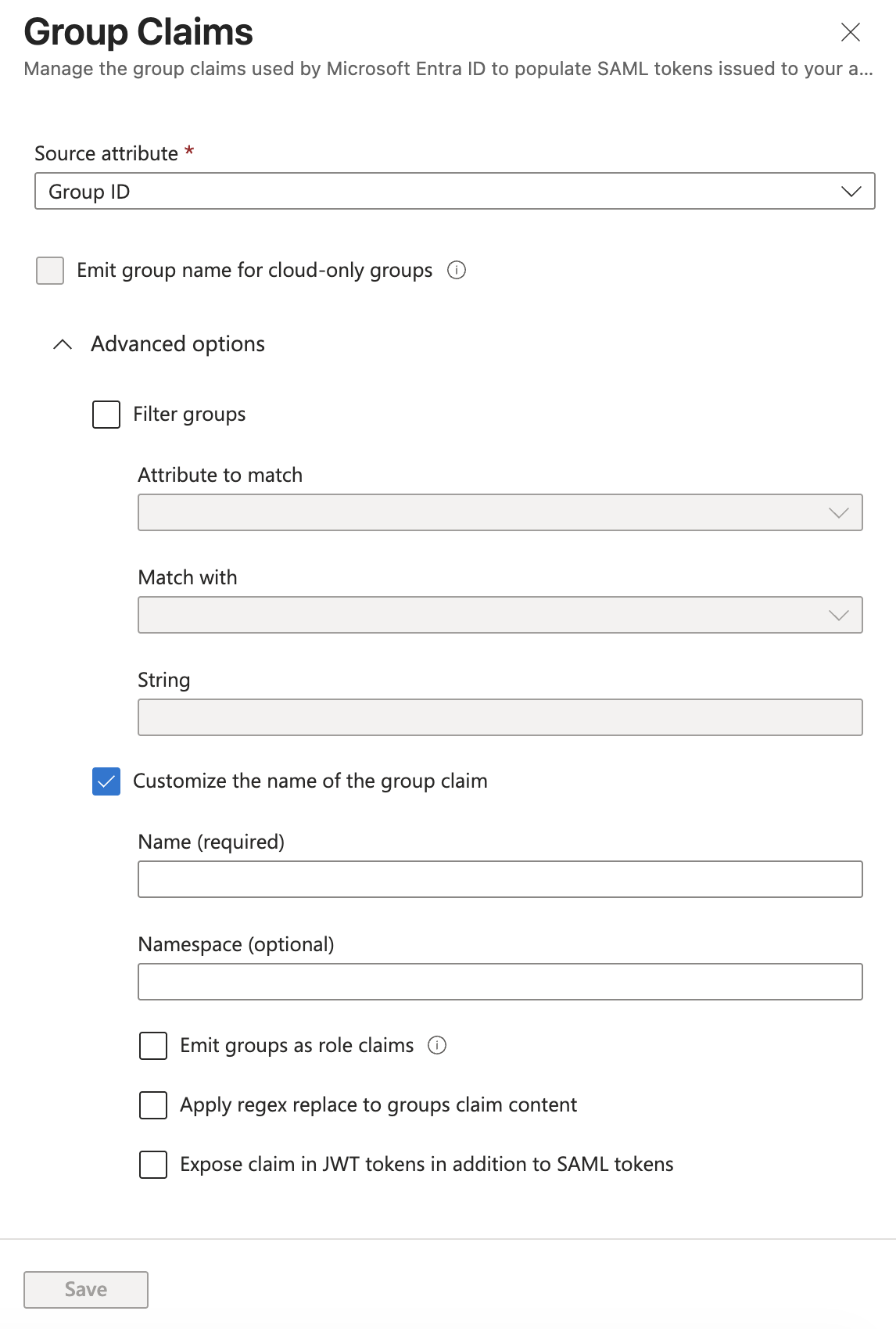

    2. In User Attributes & Claims, edit the groups claim. The Group Claims settings appear.

    3. Click the All groups option and then enable Customize the name of the group claim.

    4. In Name, enter a name to use to identify the Harness Group Attribute Name.

    5. In Namespace, enter a namespace name.

    6. Click Save. User Attributes & Groups now display the group claim you created.

    7. Close User Attributes & Groups.

  2. In Harness, enter the Group Claim name and namespace in the SAML SSO Provider Group Attribute Name field.

    1. Open the SAML SSO Provider dialog, and enable the Enable Authorization setting. You need to enable Enable Authorization in order to select this SSO Provider when you link a Harness User Group for authorization.

    2. Enter the Group Claim name and namespace in the Group Attribute Name field in the same format as a Claim Name (namespace/name). The SAML SSO Provider dialog will look something like this:

    3. Click Save. Authorization and the Group Attribute Name are set up. Next, you need to set up your Azure and Harness groups.

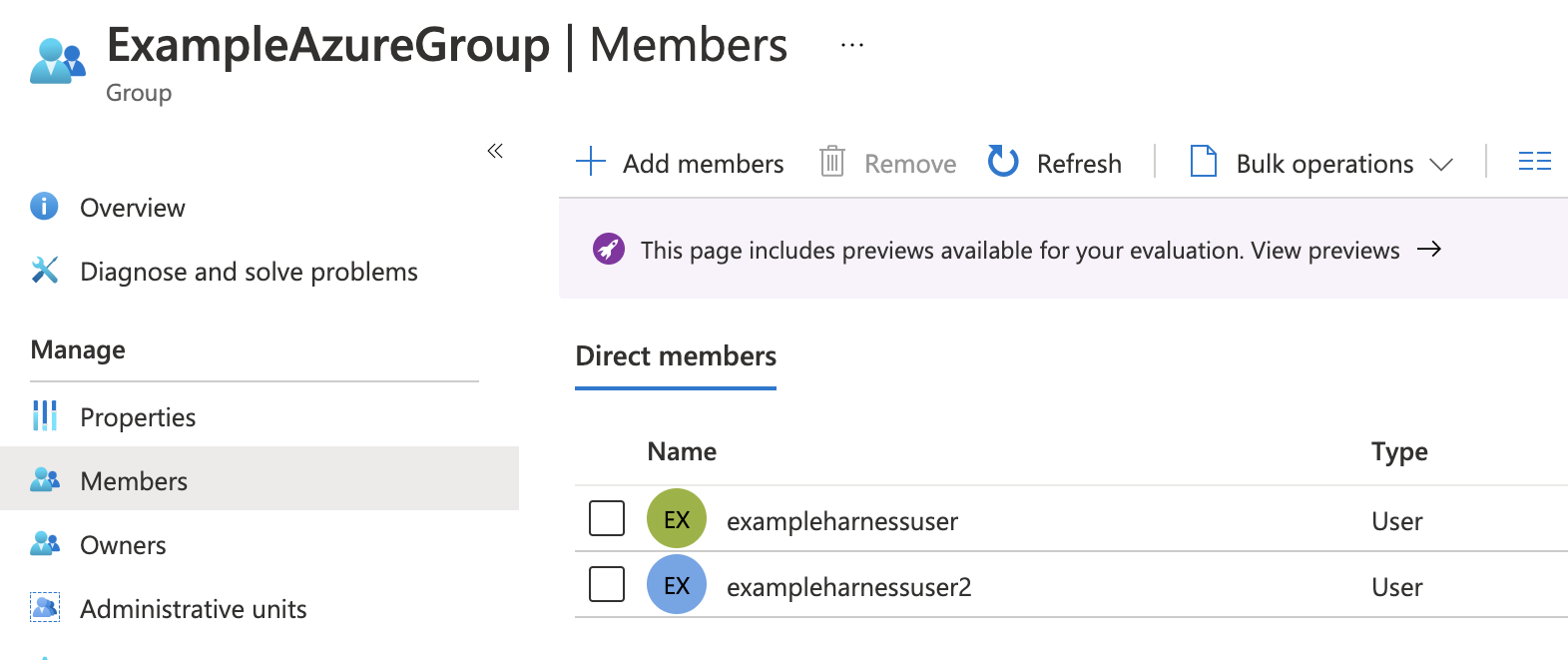

  3. In Azure, ensure the Azure users with corresponding Harness accounts belong to an Azure group. Here is an Azure group named ExampleAzureGroup with two members:

  4. Ensure that the Azure group is assigned to the Azure app. Here you can see the ExampleAzureGroup group in the Azure app's Users and groups:

  5. Link the Harness User Group to the Azure group using the Azure group Object ID.

    1. In Azure, copy the Azure group Object ID.

    2. In Harness, create a new User Group or open an existing User Group.

    3. In Account Settings, click User Groups and then click on the User Group you want to link the SAML SSO Provider to**.**

    4. Click Link to SSO Provider Group.

    5. In the Link to SSO Provider Group dialog, in SSO Provider, select the Azure SSO Provider you set up, and in Group Name, paste the Object ID you copied from Azure. When you are done, the dialog will look something like this:

    6. Click Save. The User Group is now linked to the SAML SSO Provider and Azure group Object ID.

  6. Test Authorization.

    1. Open a new Chrome Incognito window to test the authorization using a Harness User account other than the one you are currently logged in with.
    2. Log into Harness using the user email address, and sign in using the Azure username and password. If you are already logged into Azure in Chrome, you might be logged into Harness automatically.
    3. In the linked Harness User Group, ensure that the Harness User account you logged in with was added.

The Harness User is now added and the RBAC settings for the Harness User Group are applied to its account. For more information, go to Manage User Groups.

Users in over 150 groups​

When a user has many group memberships, the number of groups listed in the token can grow the token size. Microsoft Entra ID limits the number of groups it will emit in a token to 150 for SAML assertions.

If a user is a member of a larger number of groups, the groups are omitted and a link to the Graph endpoint to obtain group information is included instead.

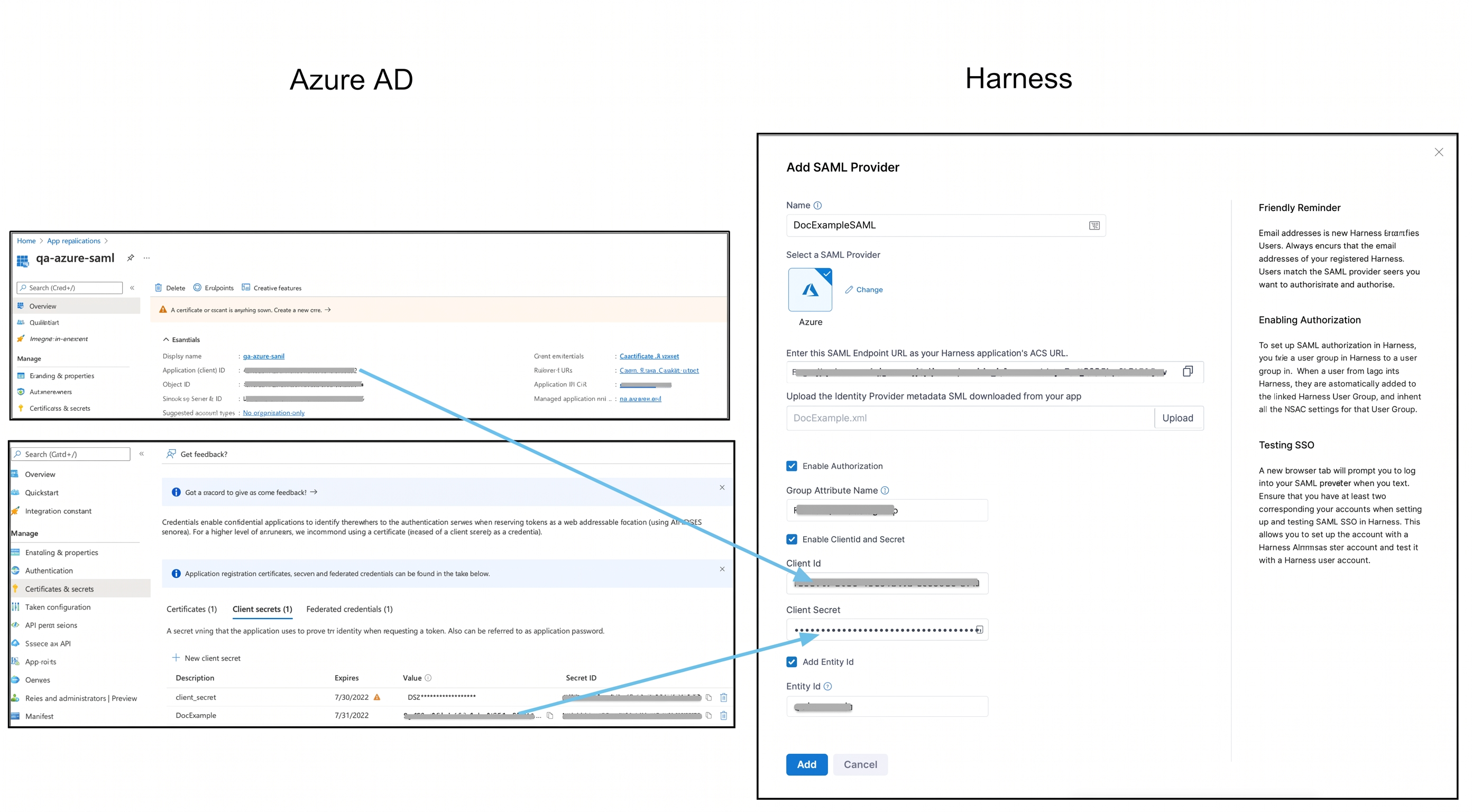

To invoke the API, Harness requires Client ID and Client Secret for your registered app.

To get this information, do the following:

  1. In your Azure account, go to App registrations.

  2. Click on your app. Copy the Application (client) ID and paste it in Client ID in your Harness account.

  3. In your Azure account, go to App registrations. Click Certificates and Secrets.

  4. Select New Client Secret.

  5. Add a description and click Add.

  6. You must copy this secret and save it as an encrypted text secret. For detailed steps to create an encrypted text in Harness, go to Use Encrypted text Secrets .

  7. Select the above secret reference in the Client Secret field in your Harness account.

When the user authenticating SAML is part of more than 150 groups in Microsoft Entra ID, you must set User.Read.All access for the application if you want to configure the optional Client ID and Client Secret. For more information on Azure application permissions, go to Application permissions in the Azure documentation.

To set User.Read.All access for the application, do the following:

  1. In Azure, go to Manage, and then select API Permissions.
  2. Select Add a permission.
  3. Under Microsoft APIs, select Microsoft Graph, and then select Application permissions.
  4. Add the User.Read.All permission.

The following App registration permissions are required to configure the optional client-id and client-secret for Harness SAML SSO with the Azure app:

  • Directory.Read.All
  • Group.Read.All
  • GroupMember.Read.All
  • User.Read.All
note

You must set the above for both Delegated permissions and Application permissions.
