Component Violations

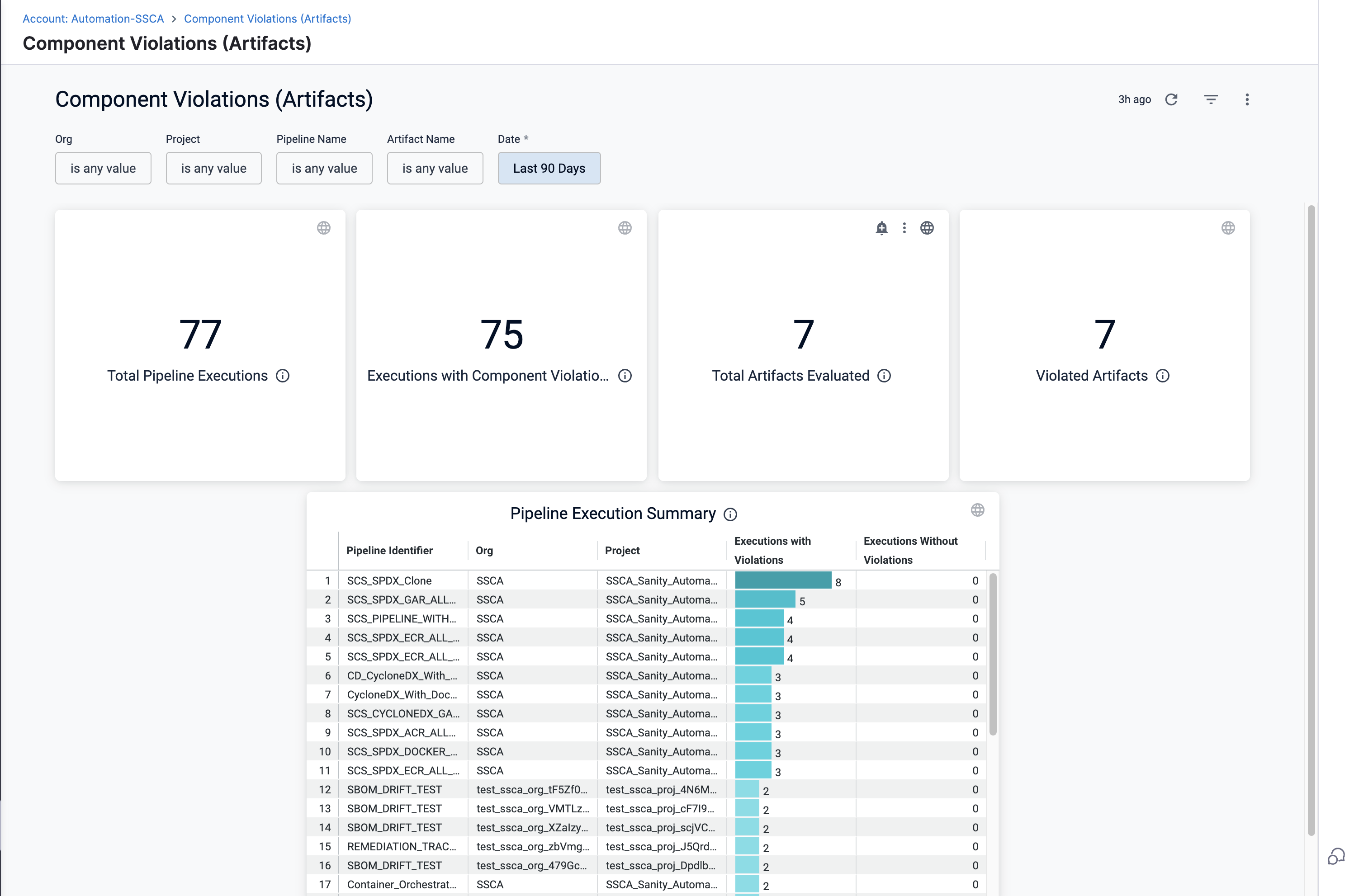

The Component Violations Dashboard for Artifacts and Repositories displays pipelines flagged for SBOM policy violations. It provides a centralized view across organizations and projects.

Follow the below steps to view component violations for artifacts. You can follow the same process to view Component violations for code repositories.

  • Total Pipeline Executions: Count of all pipeline executions that include the SBOM Policy Enforcement step for artifacts.

  • Pipeline Executions with Component Violations: Count of pipeline executions that resulted in SBOM policy violations for artifacts.

  • Total Artifacts Evaluated: Unique count of artifacts that underwent the SBOM orchestration step.

  • Violated Artifacts: Total number of artifacts that violated SBOM policies.

You can apply filters to drill down and navigate across the following key dimensions:

  • Organization: Filter data by the selected Harness Organization.

  • Project: Limit results to a specific project within the organization.

  • Pipeline Name: Filter issues based on the pipeline name that executed the SBOM Policy Enforcement step.

  • Artifact Name: Filter results by artifact name.

  • Date: Filter by predefined presets (e.g., last 7 days) or a custom date range.

Click the ellipsis icon, in the top-right corner of the dashboard to download the component violations report (PDF or CSV), or set up automated delivery (daily, weekly, or monthly).

Pipeline Execution Summary​

Pipeline Execution Summary table lists the pipelines that violated the SBOM Allow/Deny List policy.

  • Pipeline Identifier: Unique name/ID of the pipeline.

  • Org Identifier: The organization to which the pipeline belongs.

  • Project Identifier: The project the pipeline resides in.

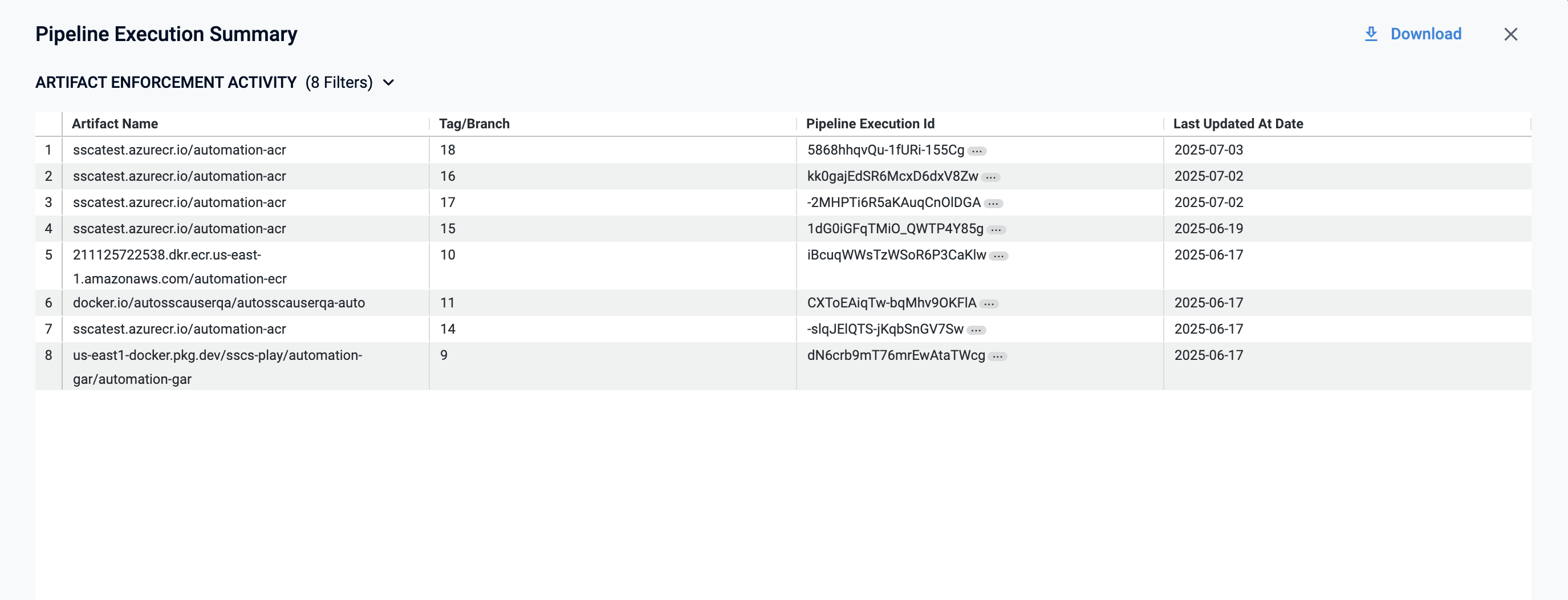

  • Executions With Violations: Number of pipeline executions that failed SBOM policy checks. When you Click on the violations count, this opens a pop-up table with the following columns:

    • Artifact Name: Name of the Artifact.

    • Tag/Branch: Branch or tag associated with the artifact.

    • Pipeline Execution ID: Unique ID of the pipeline execution. On click, it redirects you to the pipeline execution tab.

    • Last Updated At Date: Date when the pipeline execution was last updated with violation information.

  • Executions Without Violations: Number of executions that passed the SBOM policy checks.
